Welcome to one of the China’s leading manufacturers of high-quality connectors, SIGNALORIGIN’s D-sub connectors are ideally suited for applications such as Robotics & Automation, Machine Manufacturing, Agriculture & Construction Equipment, Energy, Communication, Military, Medical, Transportation. We will show you the Difference between standard density D-Sub and high density D-Sub.

Standard density D-Sub connectors

The Standard Density D-Sub have signal contacts with current rating of 5A. There are 5 sizes with connector mating layouts ranging from 9 positions to 50 positions. This connector is widely used in industrial applications worldwide.

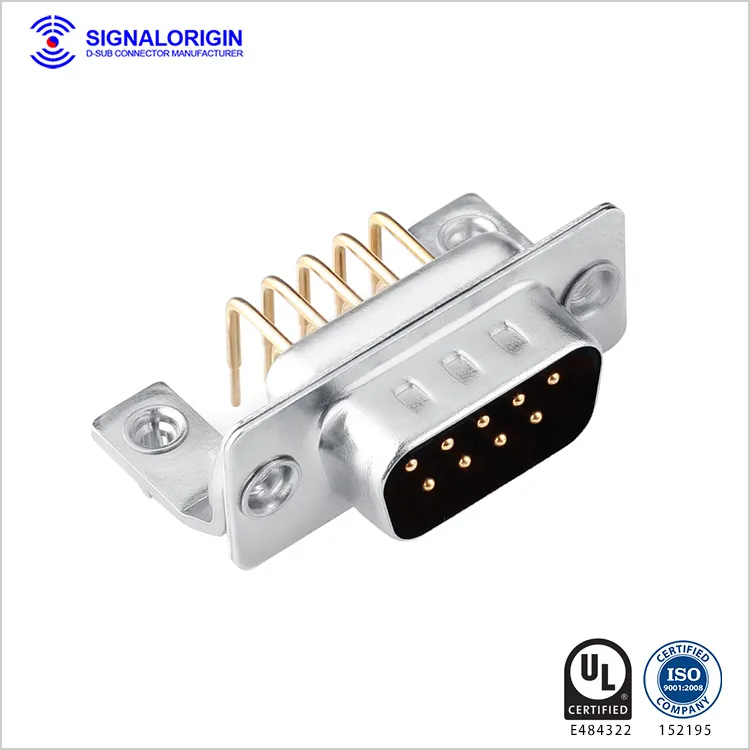

9 pin right angle d-sub power connector manufacturer male and female 9 pin d type connector manufacturer power and signal db9 female connector manufacturer


High density D-Sub connectors

The High Density D-Sub have the same size as the Standard Density connector but hold more contacts in its insulator. For a Standard Density 9 position connector the High Density holds 15 positions, for a 15 position Standard Density connector, the High Density holds 26 positions, and so on, see Tech Specs for more details. The High Density connector have a drawback in comparison and that is the current rating which is only 3Aas the Standard Density have 5A .

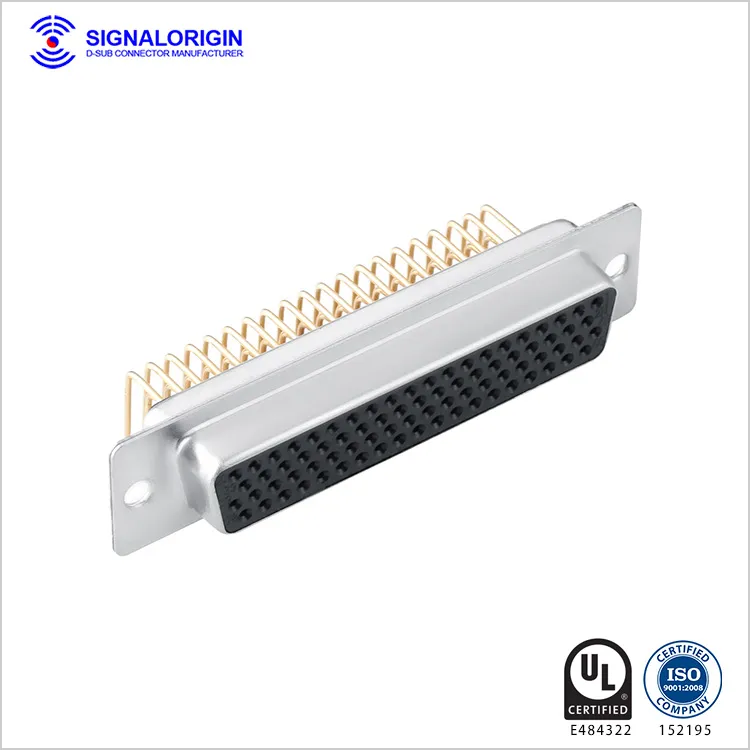

78 pin female right angle high density d-sub connectors supplier 78 pin right angle pcb socket connector High density right angle 78 pin d sub connector

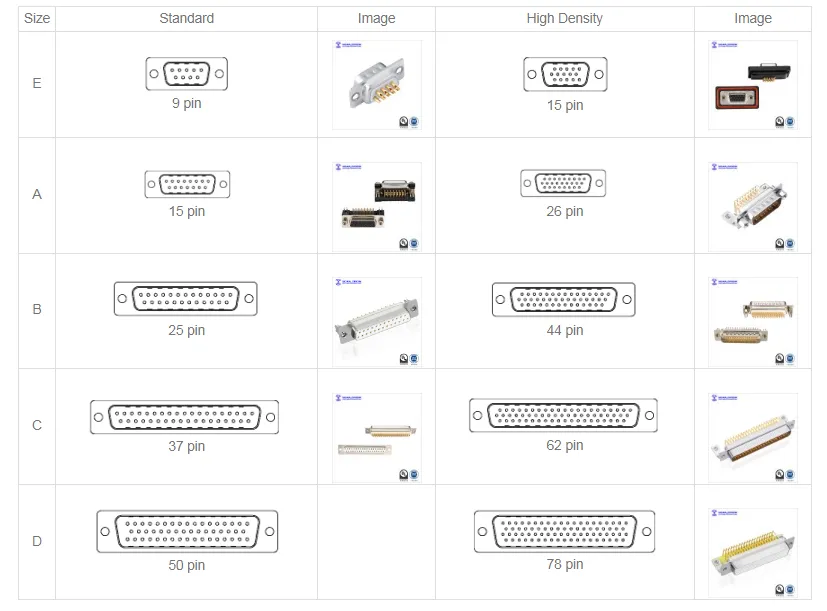

Layout of standard density D-Sub and high density D-Sub

Size Standard Image High Density Image

9 pin

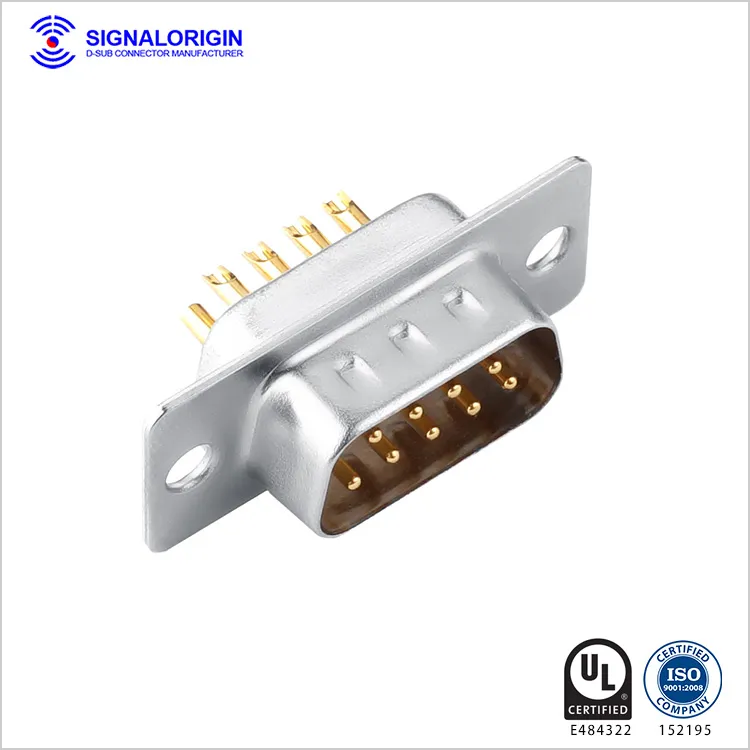

male and female 9 pin d type connector manufacturer

15 pin

Solder cup waterproof female db 15 pin connector

15 pin

 Right angle pcb d sub 15 pin female connector

26 pin

 right angle 26 pin d-sub connector manufacturer

25 pin

 D sub pcb 25 pin female connector for sale

44 pin

 44 pin female standard d sub connectors

37 pin

 37 pin d type connector manufacturer

62 pin

 62 pin high density d-sub male connector

50 pin

78 pin

 78 pin right angle pcb socket connector
