37 pin d type connector manufacturer

37 pin d type connector manufacturer

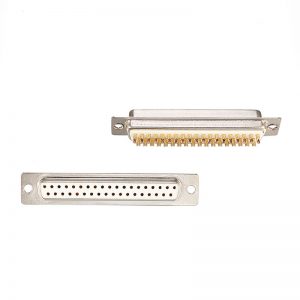

  • 37 pin d type connector, solder cup type

  • High reliability ,High density

  • All contacts are precision machined

  • High Density connectors available in 9, 15, 25 and 37 contact versions.


37 pin d type connector manufacturer. Solder cup high density D-sub connectors are a popular interface for many I/O applications. We can offer this connector in 9,15, 25,and 37 pin high density d-sub connector positions, they are a good choice for a low cost industry standard high density connection. High Density d-sub connectors offer substantial space and weight savings to PCB design engineers. You may like 37 pin male d-sub connectors.

Specification of 37 pin d type connector manufacturer

P/N XHY-06-0002

37 pin d type connector manufacturer


PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 5 AMP
Contacts OD ∮1.0
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min
     Mechanical Dielectric withstanding voltage 500V AC rms  at 1 minute
Insertion force ∮1.0 : 0.6~2 N /Pin
Extraction force ∮1.0: 0.3 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of 37 pin d type connector manufacturer

37 pin d type connector manufacturer

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
