78 pin right angle pcb socket connector

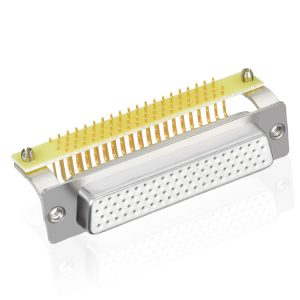

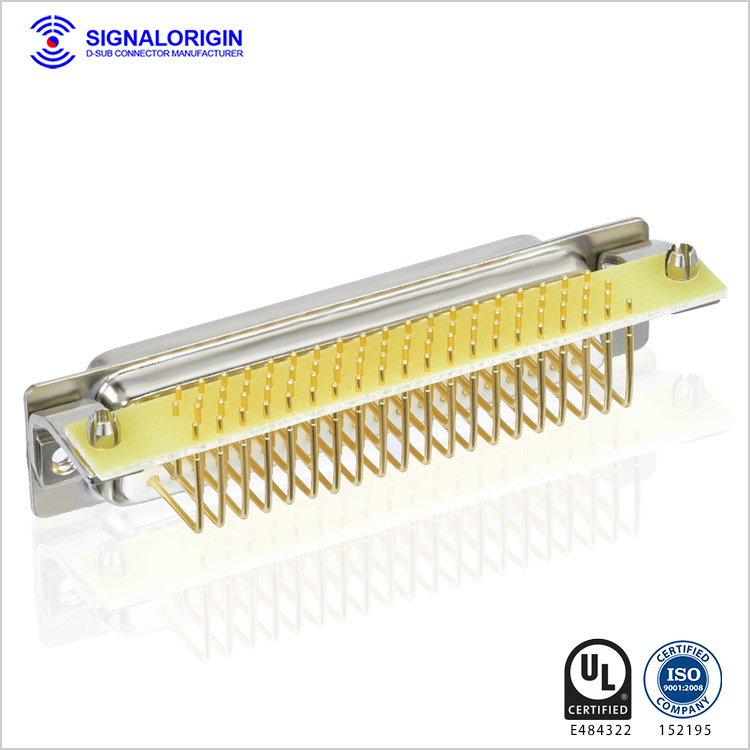

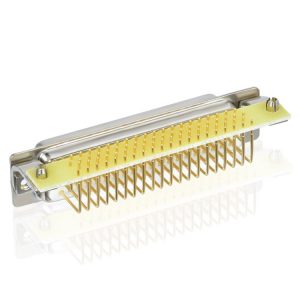

  • 78 pin pcb socket connector, right angle

  • All contacts are machined copper alloy, full gold flash

  • Our connector can be perfectly compatible connectors

  • High Density connectors available in 15,26,44,62 and 78 positions

Inquiry Now

Description

78 pin pcb socket connector, right angle, 90 degree pcb D-sub Connector. The connector is a space efficient and cable strain relieving solution for cabling production. Made of the highest quality metals and synthetic materials, this connector performs excellently in mission critical and data intensive operations, maintains structural integrity under physical stress, and gives reliable long-lasting versatility and functionality to your cables. You may like 78 pin male d-sub connector.

Specification of 78 pin right angle pcb socket connector

P/N XHY-06-0168






78 pin right angle pcb socket connector

78 pin right angle pcb socket connector





PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric strength 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

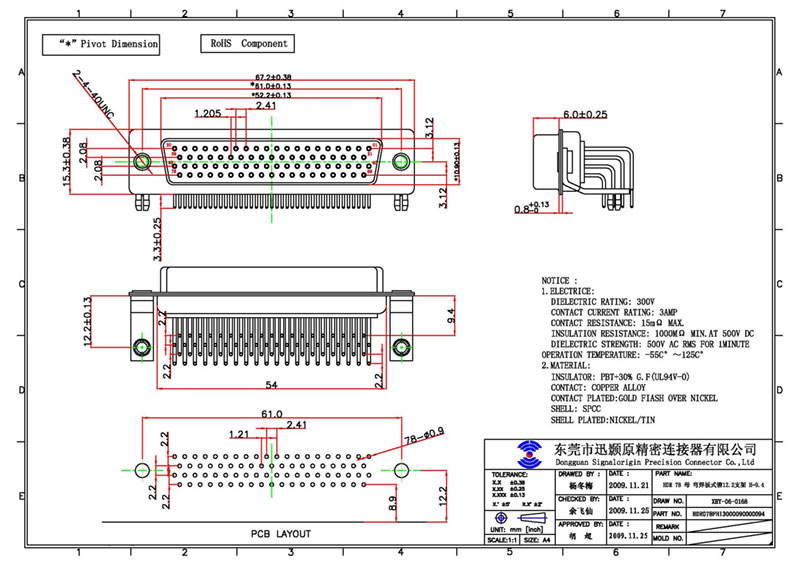

Drawing of 78 pin right angle pcb socket connector

78 pin right angle pcb socket connector

Variety of D-sub connectors
