9 pin right angle d-sub power connector manufacturer

  • D-sub with flexibility, durability, sealability
    High current rating:10A, 20A, 30A, 40A

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Inquiry Now

Description

SIGNALORIGIN is the 9 pin right angle d-sub power connector manufacturer. Our type D-sub range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions. Suitable for military, aerospace, industrial, medical, telecom and computer applications. You may also like other 9 pin standard density D-Sub

Our complete line of D-subminiature connectors ranges from standard D-sub connectors, High density D-sub Connectors, Combo D-sub connectors, High power d sub connector, Dual port d-sub, D-sub coaxial connector and waterproof D-sub connectors and more. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of 9 pin right angle d-sub power connector manufacturer

P/N XHY-06-0015

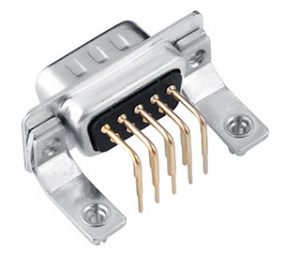

9 pin right angle d-sub power connector manufacturer

9 pin right angle d-sub power connector manufacturer







PDF Drawing Download

     Material Insulator material PBT +30%  G. F (UL94-V0)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold Plated over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V
Contact current rating 5A (customized)
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 500V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

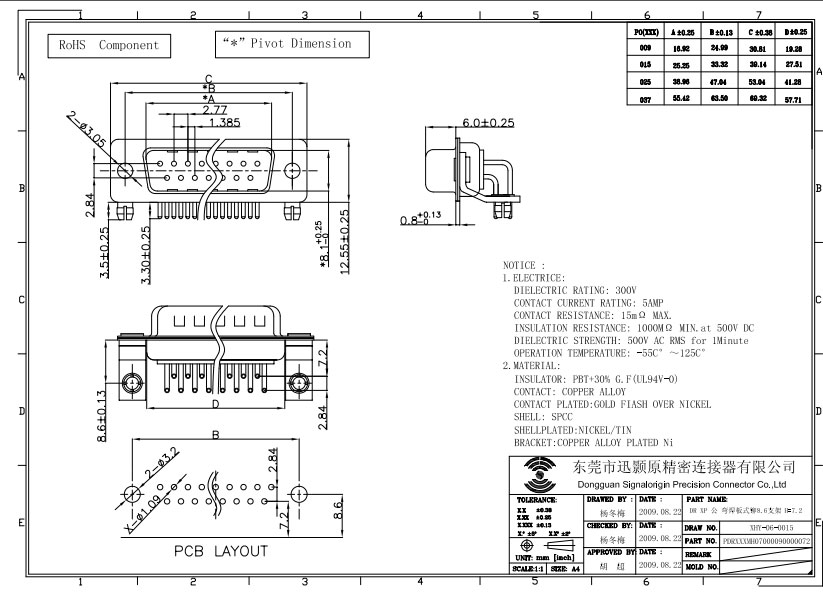

Drawing of 9 pin right angle d-sub power connector manufacturer



Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008

About us

We are specializing in designing and producing D-Sub Connectors. We have more than 10 years rich experiences in the electronic industry. In addition. Signalorigin is a brand company of Yang Ming precision electronic company, which has established a long-term strategic cooperative relation of our top 10 companies and these companies have years of experiences in our markets.
