D sub pcb 25 pin female connector for sale

  • 25 pin female connector, pcb d-sub, high density

  • All contacts are machined copper alloy

  • Bracket/screw:copper alloy material, Ni plated

  • Contact terminations can be solder cup, solder pin, wire wrap, crimp

Inquiry Now

Description

25 pin female connector, pcb d-sub connector. The connector is essential to provide the actual connection interface between two devices. Such an important function relies on durable and reliable materials, manufacturing, and design. these connectors are made of the highest quality materials to ensure maximum operational efficiency during high intensity and mission critical applications, etc. You may like 25 pin male d-sub connector.

Specification of D sub pcb 25 pin female connector for sale

P/N XHY-06-0010

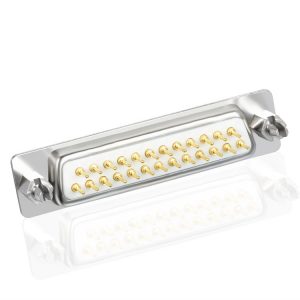

D sub pcb 25 pin female connector for sale

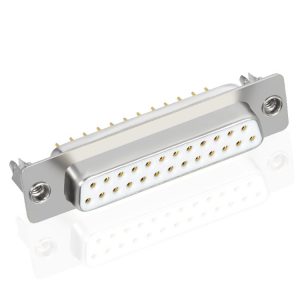

D sub pcb 25 pin female connector for sale





PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Phosphor copper
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 5 AMP
Contacts OD ∮1.0
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min
     Mechanical Dielectric strength 500V AC rms  at 1 minute
Insertion force ∮1.0 : 0.6~2 N /Pin
Extraction force ∮1.0: 0.3 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

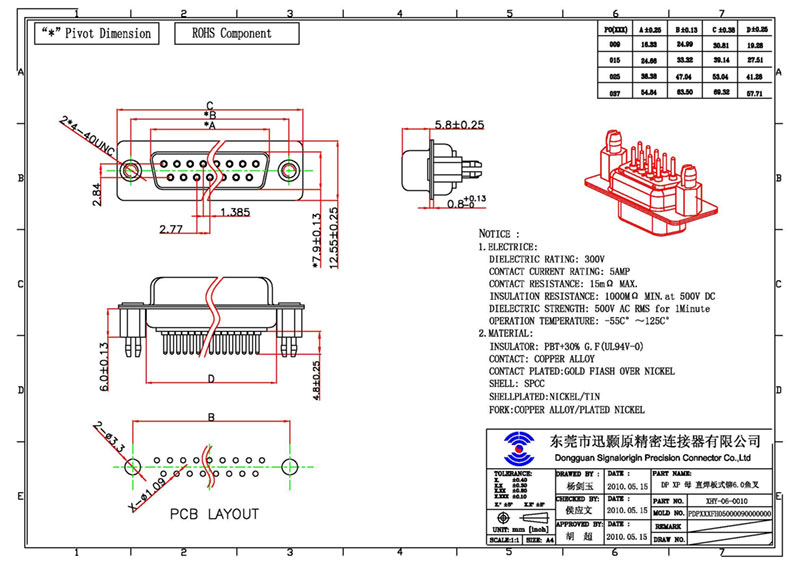

Drawing of D sub pcb 25 pin female connector for sale

D sub pcb 25 pin female connector for sale

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
