Waterproof solder cup 15 pin d connector

Home » Products » Waterproof solder cup 15 pin d connector

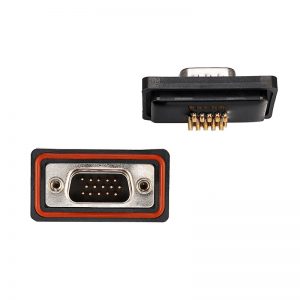

Waterproof solder cup 15 pin d connector

  • Meets IP67 Requirments

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Inquiry Now

Description

Waterproof solder cup 15 pin d connector. IP 67 D-sub connector in outdoor and severe environment to protect data transmission from threatening by the problem of transmission speed, unstable temperature, humidity environment, oil, dust, corrosive chemicals and vibration, electromagnetic interference and other issues, ensure the stability and reliability of data transmission. You may like 15 pin female d-sub connectors.

Specification of Waterproof solder cup 15 pin d connector

P/N XHY-06-0051


waterproof solder cup 15 pin d connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

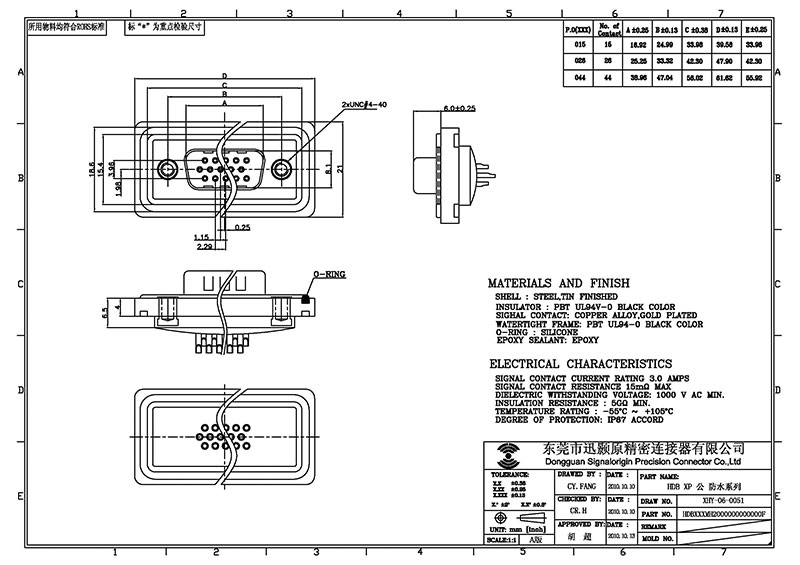

Drawing of waterproof solder cup 15 pin d connector

Waterproof solder cup 15 pin d connector
