Right angle pcb d sub 15 pin female connector

Right angle pcb d sub 15 pin female connector

  • All contacts are precision machined

  • Shell: Shell: Steel/SPCC-SD, nickel or tin plated

  • Hight freqency contact: copper alloy material, gold plated

  • RoHS & UL Compliant versions available

Description

These right angle pcb d sub 15 pin female connector, IP 67 connector is in standard shell sizes providing up to contacts and standard mating types such as solder cup, solder pin (straight and right angle) are available. And a variety of different configurations are available in male and female connectors. You may like 15 pin male d-sub connectors.

Specification of Right angle pcb d sub 15 pin female connector

P/N XHY-06-0022


right angle pcb d sub 15 pin female connector



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 5 AMP
Contacts OD ∮1.0
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min
     Mechanical Dielectric withstanding voltage 500V AC rms  at 1 minute
Insertion force ∮1.0 : 0.6~2 N /Pin
Extraction force ∮1.0: 0.3 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

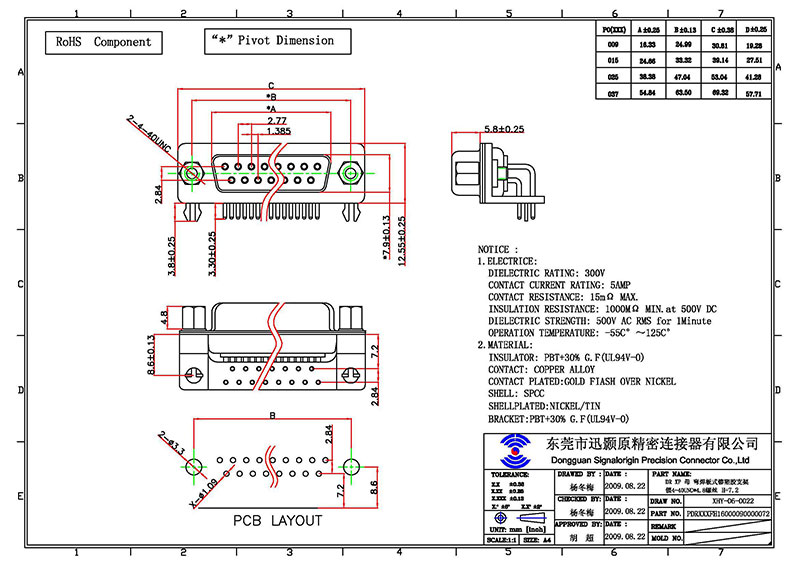

Drawing of right angle pcb d sub 15 pin female connector

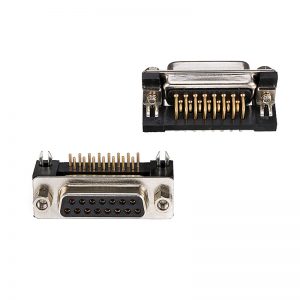

Right angle pcb d sub 15 pin female connector

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008
