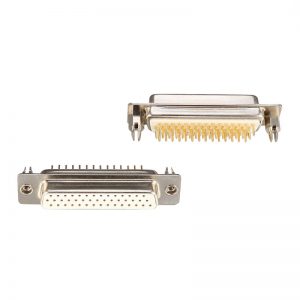

44 pin female standard d sub connectors

  • 44 pin female standard d sub connectors

  • High reliability and high density,All contacts are precision machined

  • Contact terminations can be Solder cup, Solder pin, Wire wrap

  • RoHS & UL Compliant versions available

Inquiry Now

Description

44 pin female standard d sub connectors, with 6.0 copper alloy fork, with nuts, insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. High density connectors offer crimp removable contacts for signal, power, high voltage contacts applications. All our contacts are RoHS & non-RoHS Compliant versions available. These connectors are available in standard and high density versions. You may like 44 pin male d-sub connectors.

Specification of 44 pin female standard d sub connectors

P/N XHY-06-0034


44 pin female standard d sub connectors



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Phosphor copper
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric withstanding voltage 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

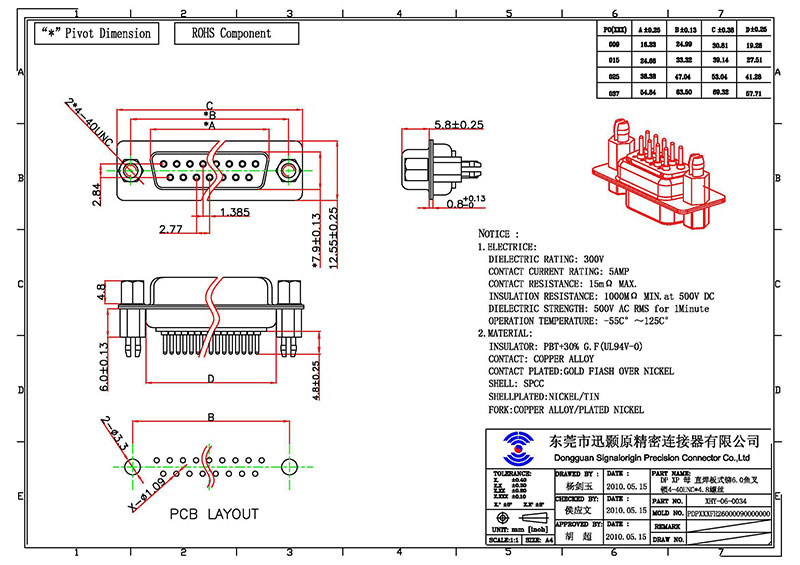

Drawing of 44 pin female standard d sub connectors

44 pin female standard d sub connectors
