Power and signal db9 female connector manufacturer

  • D-sub with flexibility, durability, sealability
    High current rating:10A, 20A, 30A, 40A

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Inquiry Now

Description

SIGNALORIGIN is the power and signal db9 female connector manufacturer. our D-sub connectors are available in standard density versions, power, shielded, high voltage and air contacts. Standard mating types such as solder cup, solder pin (straight and right angle) are available. And These connectors areavailable in various performance levels for best cost/performance rati. You may also like other 9 pin standard density D-Sub
Our complete line of D-subminiature connectors ranges from standard D-sub connectors, High density D-sub Connectors, Combo D-sub connectors, High power d sub connector, Dual port d-sub, D-sub coaxial connector and waterproof D-sub connectors and more.

Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Types of d-sub connectors and their uses

Specification of power and signal db9 female connector manufacturer

P/N XHY-06-0034

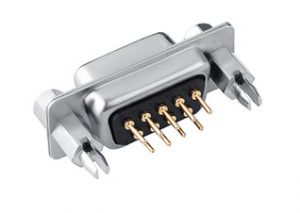

power and signal db9 female connector manufacturer

power and signal db9 female connector manufacturer











PDF Drawing Download

     Material Insulator material PBT + 30% G. F  UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over Ni, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
Fork Copper alloy/plated nickel
     Electrical Dielectric rating 300V
Contact current rating 5A (customized)
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min.at 500v DC
     Mechanical Dielectric strength 500V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of power and signal db9 female connector manufacturer



Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Types of power and signal connectors

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008
