78 pin female right angle high density d-sub connectors supplier

Home » Products » 78 pin female right angle high density d-sub connectors supplier

78 pin female right angle high density d-sub connectors supplier

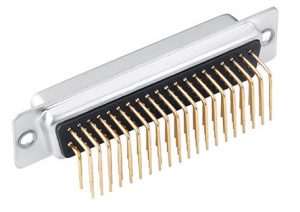

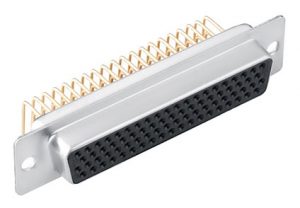

  • 78 pin pcb socket connector, right angle

  • All contacts are machined copper alloy, full gold flash

  • Our connector can be perfectly compatible connectors

  • High Density connectors available in 15,26,44,62 and 78 positions

Inquiry Now

Description

SIGNALORIGIN is the 78 pin female right angle high density d-sub connectors supplier. This high density connector arew vailable in 7 industry sizes/positions (9, 15, 25, 37, 50, 68, 78). Non-removable contacts, Tin shells have indents to provide grounding and additional retention. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.
This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application. You may like 78 pin male d-sub connector.

Specification of 78 pin female right angle high density d-sub connectors supplier

P/N XHY-06-0168
78 pin female right angle high density d-sub connectors supplier

78 pin female right angle high density d-sub connectors supplier













PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric strength 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

Drawing of 78 pin right angle pcb socket connector

78 pin right angle pcb socket connector

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008
