High density right angle 78 pin d sub connector

  • 78 pin d sub connectors, high density

  • All contacts are machined copper alloy

  • Contact terminations can be solder cup, solder pin, wire wrap, crimp

  • High Density connectors available in 15,26,44,62 and 78 positions

Inquiry Now

Description

78 pin d sub connector, high density d sub connectors. Our high density connectors also available in 15, 26, 44,and 62 positions,they are a good choice for a low cost industry standard high density connection. Interchangeable with all D-subminiature connectors on the market. Machined pin versions offer higher quality, higher amperage ratings and upwards from 200 mating operations. You may like 78 pin female d-sub connector.

Specification of High density right angle 78 pin d sub connector

P/N XHY-06-0163

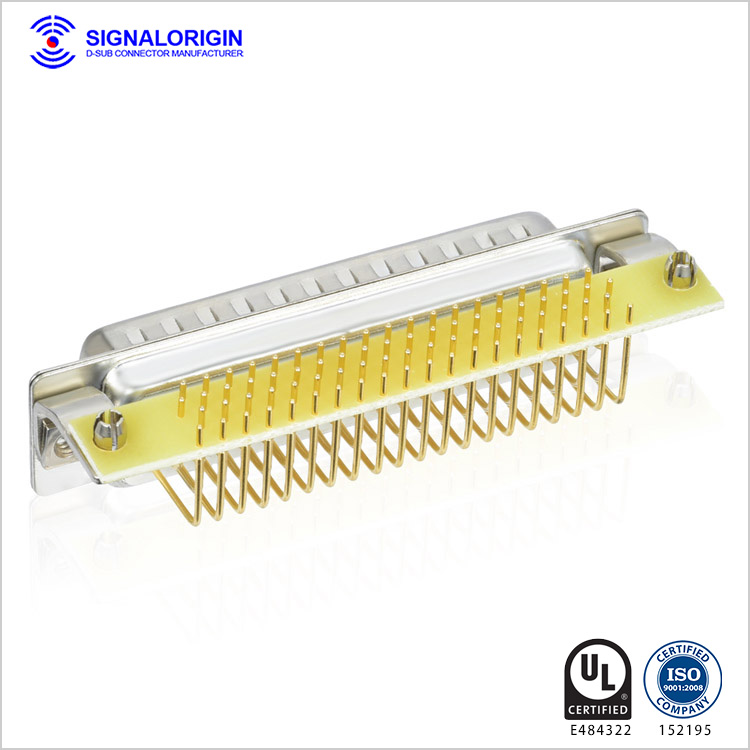

High density right angle 78 pin d sub connector

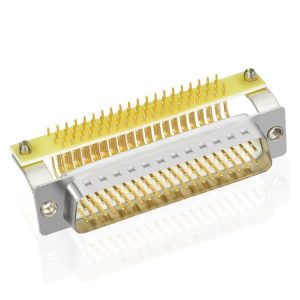

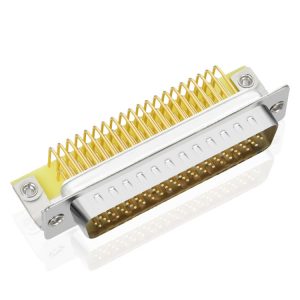

High density right angle 78 pin d sub connector





PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric strength 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

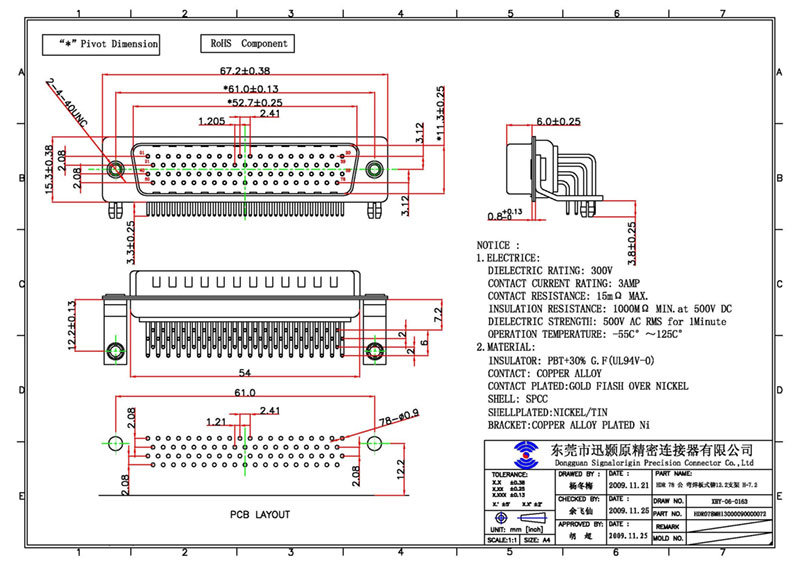

Drawing of High density right angle 78 pin d sub connector

High density right angle 78 pin d sub connector
