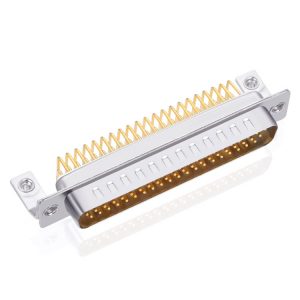

62 pin high density d-sub male connector

  • 62 pin d-sub male connector, high density, right angle

  • All contacts are machined copper alloy

  • Shell: steel or copper alloy material, Tin/Ni or Au finished

  • High Density connectors available in 15,26,44,62 and 78 positions

Inquiry Now

Description

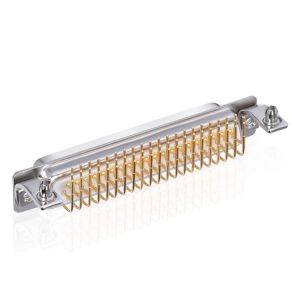

62 pin d-sub male connector, right angle. Our high density connectors also available in 15, 26, 44,and 78 positions,they are a good choice for a low cost industry standard high density connection. This connector performs excellently in mission critical and data intensive operations, maintains structural integrity under physical stress, and gives reliable long-lasting versatility and functionality to your cables. You may like 62 pin female d-sub connector.

Specification of 62 pin high density d-sub male connector

P/N XHY-06-0203








62 pin high density d-sub male connector

62 pin high density d-sub male connector



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric strength 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

Drawing of 62 pin high density d-sub male connector

62 pin high density d-sub male connector
