All coax contacts are precision machined
Coaxial contact impedance: 50Ω+/-5Ω；75Ω+/-5Ω
Dielectric withstanding voltace: 750v ac for 1 minute
All our contacts are RoHS & UL Compliant versions available
Signal d-sub female coaxial right angle terminal
Description
Signal d-sub female coaxial right angle terminal. It’s material is phosphor copper alloy with full gold plated finish, high performance, precision machined contacts, offer advantages with regard to current carrying capacity, and an increased mechanical strength, 500 mating cycles.
Specification of Signal d-sub female coaxial right angle terminal
| P/N | XHY-07-0015 | ||
|---|---|---|---|
|
|
Material | Contacts material | Brass |
| Contact Plating | Gold Plated, 1U”-30U” | ||
| Contact insulator material | TEFLON | ||
| Electrical | Working Voltage | 250V AC | |
| Contact resistance | 3mΩ | ||
| Coaxial contact impedance | 50Ω；75Ω | ||
| The radio frequency range | 0~4ghz. | ||
| Voltage standing wave ratio | 1.3max | ||
| Insulation resistance | 2000MΩ Min | ||
| Mechanical | Dielectric Withstanding Voltage | 750V AC rms at 1 minute | |
| Insertion force | 2-7 N /Pin | ||
| Extraction force | 0.5 N /Pin | ||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

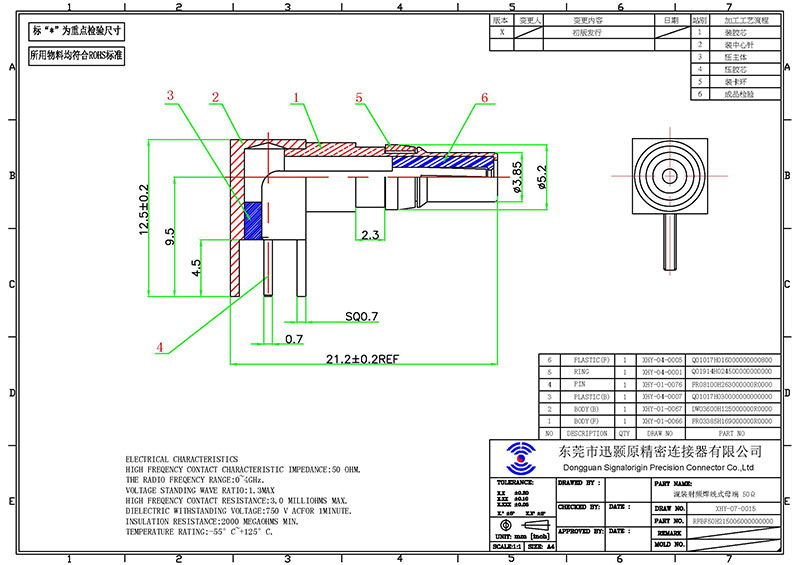

Drawing of signal d-sub female coaxial right angle terminal
