25W3 female D-sub mixed contact waterproof connector

  • 25W3 high current connector, wateroroof

  • All contacts are precision machined

  • Hight freqency contact: phosphor copper, gold plated

  • Mixed contacts for soldering on to cable

  • Contacts for currents of 10A to 40A can be customized

Inquiry Now

Description

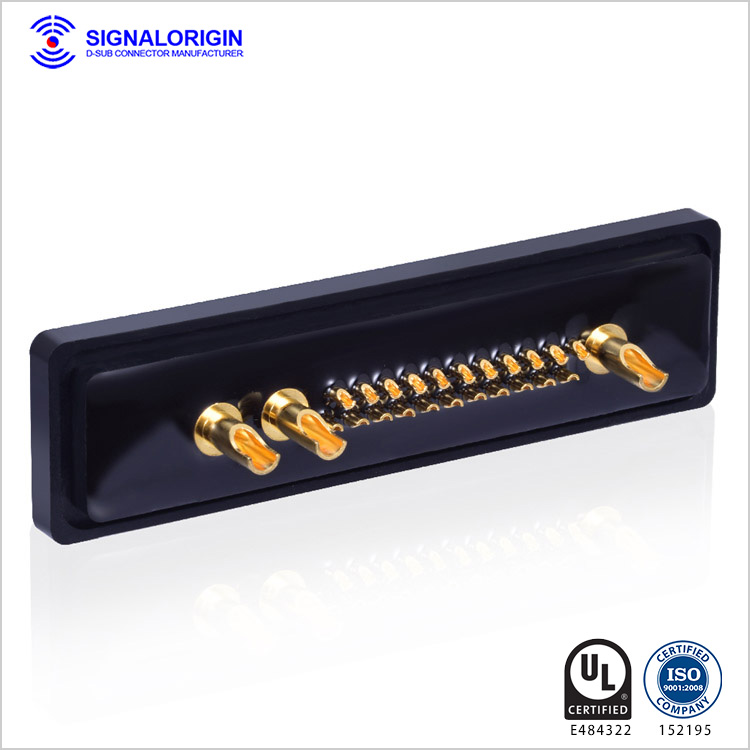

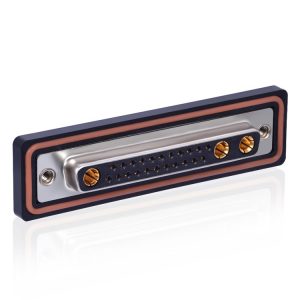

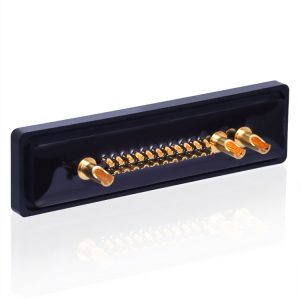

25W3 female D-sub mixed contact waterproof connector. The connectors offer a combination of signal, high voltage, and high power contacts. The cotacts are copper alloy material and gold plated. And this solder cup d-sub connector is waterproof designed, aimed at equipment placed in harsh environments, indoors and outdoors, where connectors are exposed to moisture, dust and dirt. You may like 25w3 male d-sub connector.

Specification of 25W3 female D-sub mixed contact waterproof connector

P/N  XHY-05-3662




25W3 female D-sub mixed contact waterproof connector

25W3 female D-sub mixed contact waterproof connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

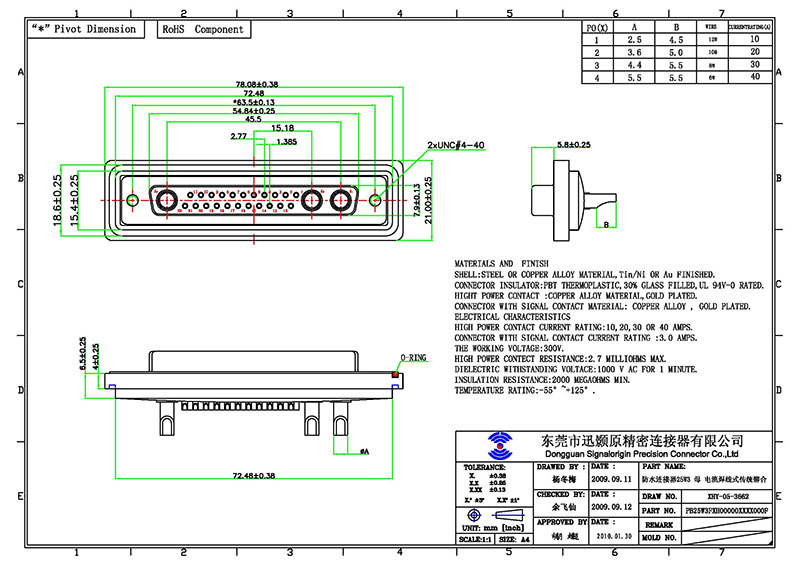

Drawing of 25W3 waterproof High current D-SUB solder cup connector
