7w2 male right angle combo high power d-connector manufacturers

  • D-sub with flexibility, durability, sealability
    High current rating:10A, 20A, 30A, 40A

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Inquiry Now

Description

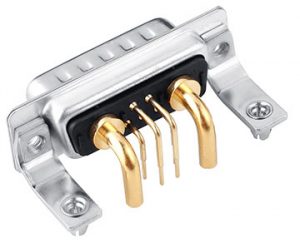

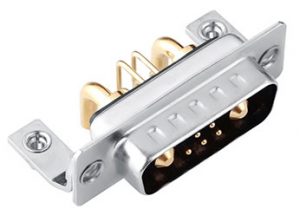

SIGNALORIGIN is the 7w2 male right angle combo high power d-connector manufacturers. 7w2 male combination layout d sub connectors wholesale. Combination D-Sub with mixed Layout, it provides the ideal solution for applications to require power, and signal within one connector. 7w2 D-Sub connector have 2pcs power contacts and and 5pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.
Our complete line of D-subminiature connectors ranges from standard D-sub connectors, High density D-sub Connectors, Combo D-sub connectors, High power d sub connector, Dual port d-sub, D-sub coaxial connector and waterproof D-sub connectors and more.

Specification of 7w2 male right angle combo high power d-connector manufacturers

P/N XHY-05-1413












7w2 male right angle combo high power d-connector manufacturers

7w2 male right angle combo high power d-connector manufacturers





PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
High power contact Copper alloy material, gold plated
Connector with signal contact material Copper alloy, Gold plated
Shell material Steel or copper alloy material, Tin/Ni or Au finished
Bracket Copper alloy material, Ni plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
High power contact resistance 2.7 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

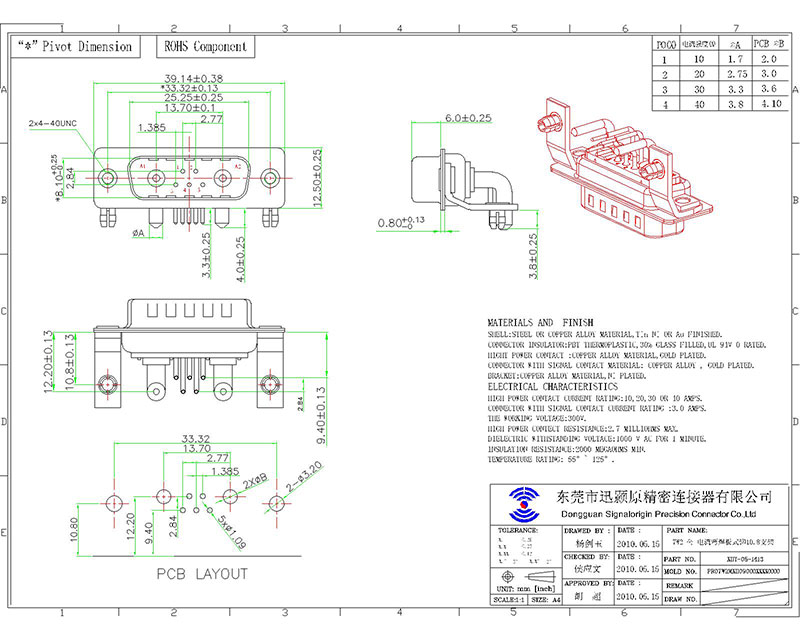

Drawing of 7w2 male right angle combo high power d-connector manufacturers
