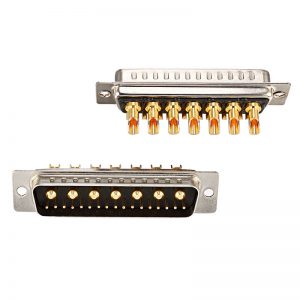

24W7 d sub solder cup power and signal connector

  • 24W7 d sub power and signal connector, solder cup type

  • All contacts are machined copper alloy, full gold flash

  • Suitable for high current application, current rating: 10, 20, 30, 40 A

  • Dielectric withstanding voltace: 1000v ac for 1 minute

Inquiry Now

Description

24W7 d sub solder cup power and signal connector,all contacts are machined and gold plating, machined contacts to ensure reliability, durability and strength. 24W7 combination D-subminiature connectors offer a combination of signal, high voltage, and high power contacts, the power contacts are available with current rating ranging between 10A – 40A. You may like 24w7 female d-sub connectors.

Specification of 24W7 d sub solder cup power and signal connector

P/N XHY-05-3401


24W7 d sub solder cup power and signal connector



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical The working voltage 300V AC
High power contact current rating 10, 20, 30, 40 A (can be customized)
Connector with signal contact current rating 3 A
Contact resistance 2.7 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

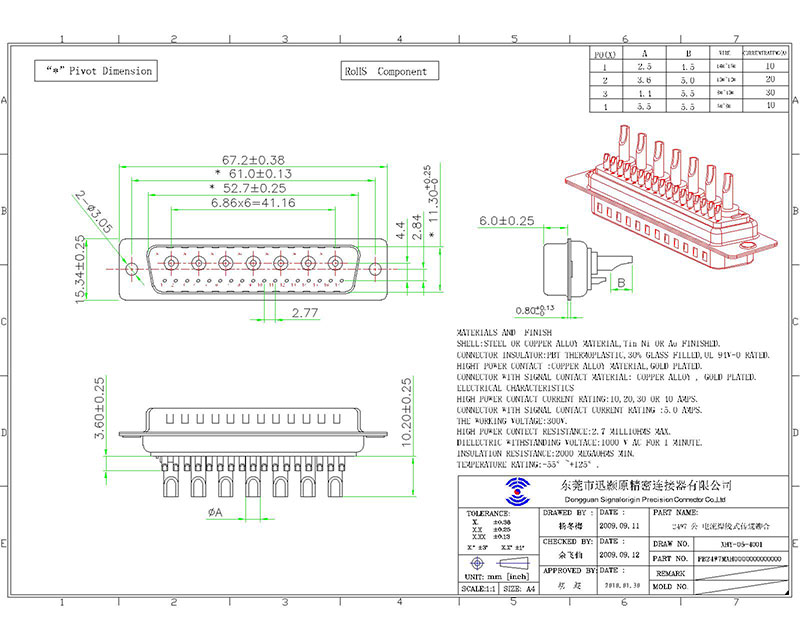

Drawing of 24W7 d sub solder cup power and signal connector

24W7 d sub solder cup power and signal connector

Variety of D-sub connectors
