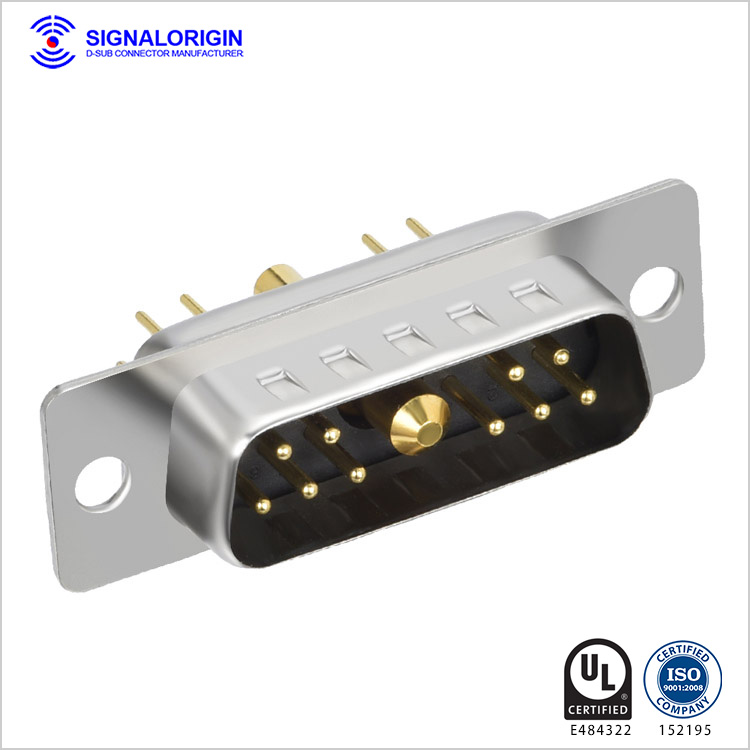

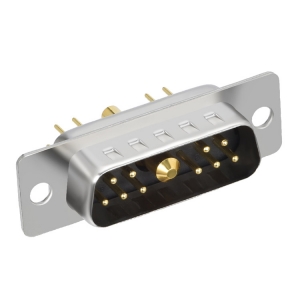

11W1 male mixed contact d type connector

  • D type combo connectors

  • All contacts are precision machined

  • The Power contacts are available with current rating ranging between 10A – 40A

  • Insertable and removable power, high voltage and signal contacts

Inquiry Now

Description

11W1 male mixed contact d type connector brings the advantage of an industry standard I/O interconnect product with the possibility to customize for any application. All contacts are machined with two different platings. The range is designed around the standard D-Sub shell sizes with the possibility to have a blend of contacts such as signals with power, or high voltage contacts. You may like 11w1 female d-sub connector.

Specification of 11W1 male mixed contact d type connector

P/N XHY-05-2007


11W1 Male Mixed Contact D Type Connector

11W1 Male Mixed Contact D Type Connector





PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
High power contact Copper alloy material, gold plated
Connector with signal contact material Copper alloy, Gold plated
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High power contact current rating 10, 20, 30, 40 A (can be customized)
Connector with signal contact current rating 3A
The working voltage 300V
High power contact resistance 2.7 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

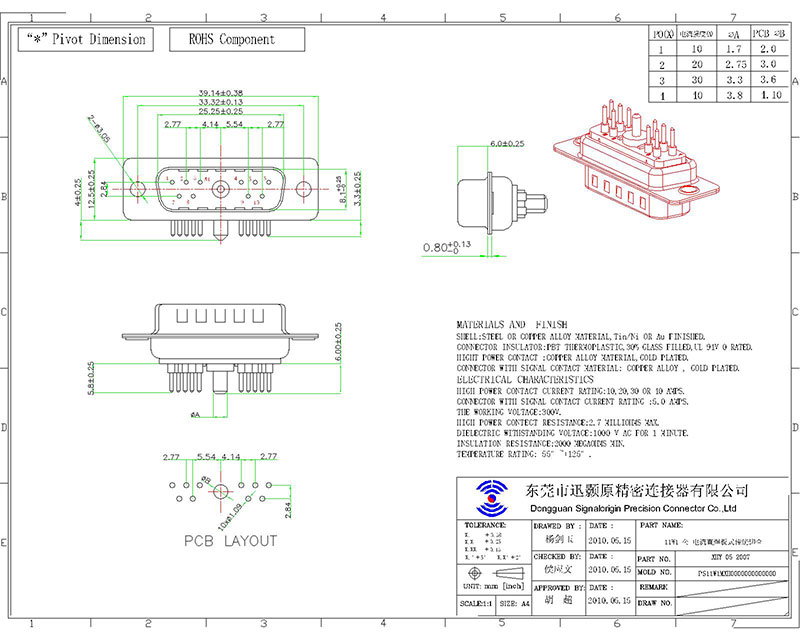

Drawing of 11W1 male mixed contact d type connector

11W1 male mixed contact d type connector
