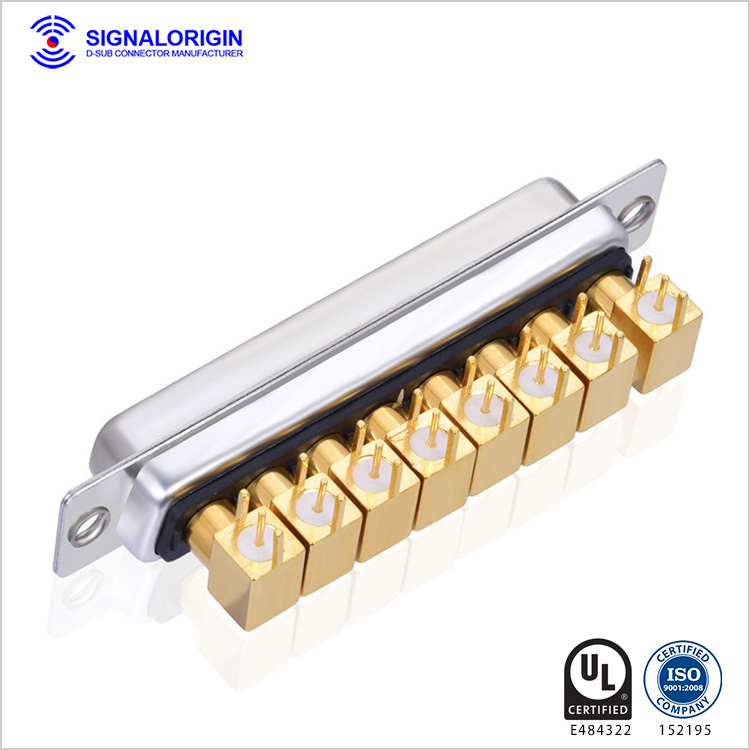

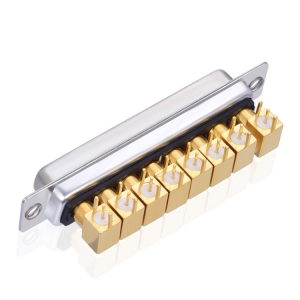

Right angle female coaxial d sub 8W8 connector wholesale

  • Shell: Steel/SPCC-SD, Nickel or tin plated

  • Contact: Phosphor copper material, gold plated

  • Coaxial contact impedance: 50Ω+/-5Ω;75Ω+/-5Ω

  • Dielectric withstanding voltace: 750V AC rms  at 1 minute

Inquiry Now

Description

Right angle female coaxial d sub 8W8 connector wholesale. The coaxial D-Sub the high current versions reduce EMI/RFI leakage. All contacts are machined processing, phosphor copper material, gold plated. Coaxial D-Sub have 8 coaxial contacts. It is full layout. The impedance for the coaxial contacts are 50Ω or 75Ω.

Specification of Right angle female coaxial d sub 8W8 connector

P/N XHY-05-1623
Right angle female coaxial d sub 8W8 connector wholesale

Right angle female coaxial d sub 8W8 connector wholesale

PDF Drawing Download



Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Shell Material Steel or copper alloy material, Tin/Ni or Au finished
Electrical High frequency contact current rating 50 or 75 ohm
The radio frequency 0~3GHz
The working voltage 300V
Coaxial contact impedance 50Ω+/-5Ω;75Ω+/-5Ω
High frequency contact resistance 10 milliohms max
Mechanical Dielectric Withstanding Voltage 1000 v AC for 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

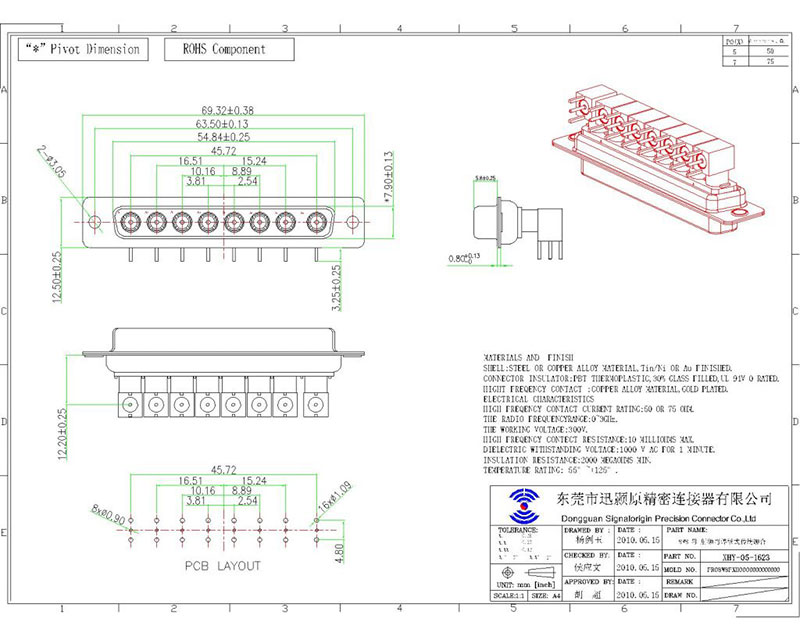

Drawing of Right angle female coaxial d sub 8W8 connector wholesaleRight angle female coaxial d sub 8W8 connector wholesale
