13W6 male solder cup d type combo connector

Home » Products » 13W6 male solder cup d type combo connector

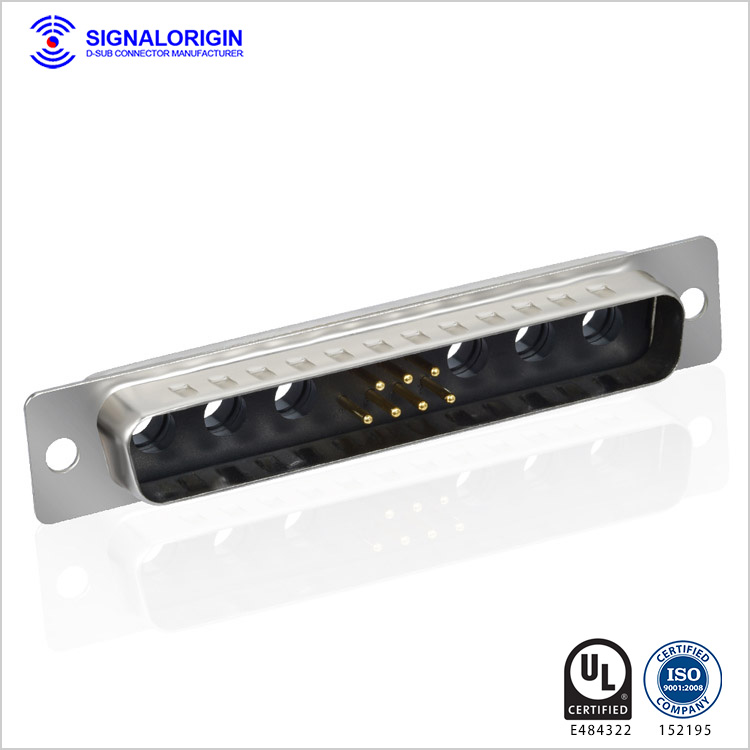

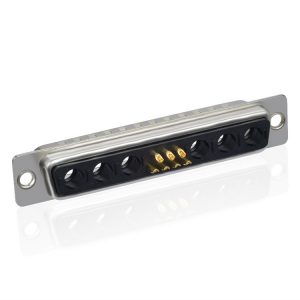

13W6 male solder cup d type combo connector

  • Solder cup d type combo connector

  • All contacts are precision machined

  • Mixed contacts for soldering on to cable

  • Our connector can be perfectly compatible connectors

Inquiry Now

Description

13W6 male solder cup d type combo connector. All contacts are machined. The connector insulator is pbt thermoplastic, ul 94v-0 rated and the high current contact is copper alloy materail, gold plated. 13W6 D-Sub connector have 6pcs power contacts and 7pcs signal contacts. The power contacts are available with current rating ranging between 10A – 40A. You may like 13w6 female d-sub connector.

Specification of 13W6 male solder cup d type combo connector

P/N  XHY-05-2401
13W6 male solder cup d type combo connector

13W6 male solder cup d type combo connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 5A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

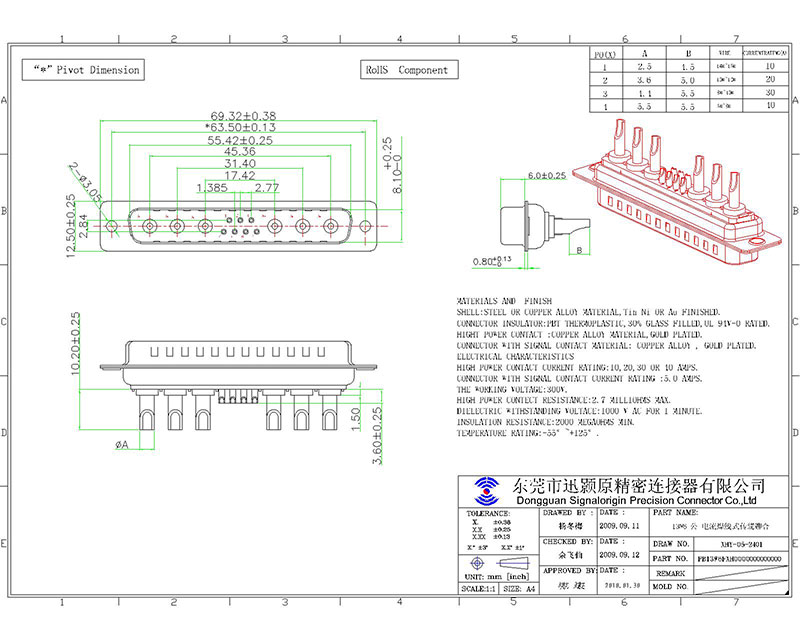

Drawing of 13W6 male solder cup d type combo connector13W6 male solder cup d type combo connector
