25 pin d-sub connector male PCB right angle type

Home » Products » 25 pin d-sub connector male PCB right angle type

25 pin d-sub connector male PCB right angle type

  • 25 pin male d sub connectors

  • High reliability and high density, All contacts are precision machined

  • Contact terminations can be solder cup, straight, right angle

  • RoHS & UL Compliant versions available

Inquiry Now

Description

SIGNALORIGIN is the 25 pin d-sub connector male PCB right angle type manufacturer. Our D-sub connector range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions. Suitable for military, aerospace, industrial, medical, telecom and computer applications. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of 25 pin d-sub connector male PCB right angle type

P/N XHY-06-0021

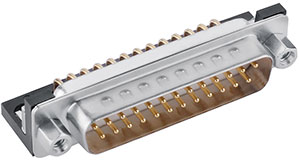

25 pin d-sub connector male PCB right angle type

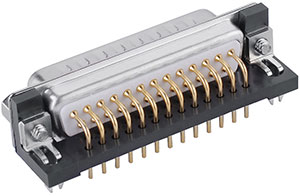

25 pin d-sub connector male PCB right angle type





PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Phosphor copper
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 5 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric withstanding voltage 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

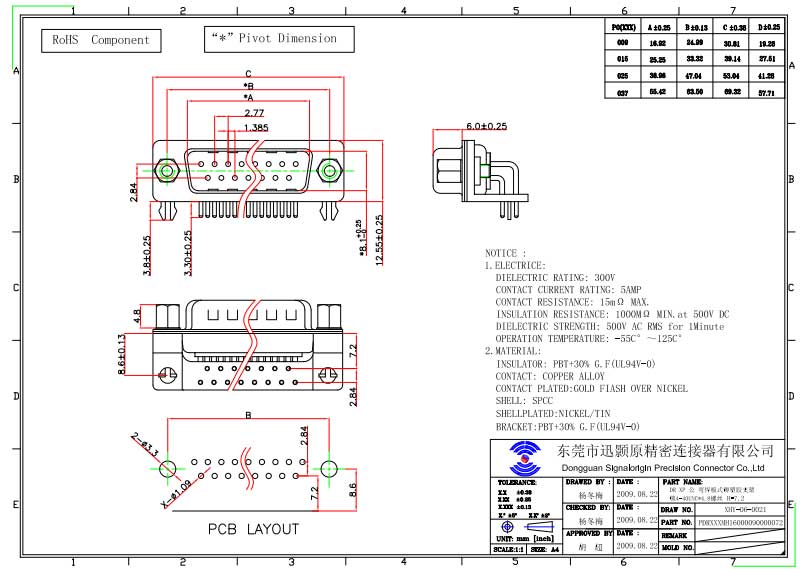

Drawing of 25 pin d-sub connector male PCB right angle type

25 pin d-sub connector male PCB right angle type



Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
