Coax d sub rf signal contact wholesale

Coax d sub rf signal contact wholesale

  • All coax contacts are precision machined

  • Coaxial contact impedance: 50Ω+/-5Ω;75Ω+/-5Ω

  • Dielectric withstanding voltace: 750v ac for 1 minute

  • All our contacts are RoHS & UL Compliant versions available


Coax d sub rf signal contact wholesale. This gold coaxial contact pin material is phosphor copper alloy with full gold plated finish, high performance, precision machined contacts, offer advantages with regard to current carrying capacity, and an increased mechanical strength. All our contacts are RoHS & non-RoHS Compliant versions available.

Specification of Coax d sub rf signal contact wholesale

 P/N XHY-07-0001
coax d sub rf signal contact wholesale

PDF Drawing Download

Material Contacts material Brass
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Electrical Working Voltage 250V AC
Contact resistance 3mΩ
Coaxial contact impedance 50Ω;75Ω
The radio frequency range 0~4ghz.
Voltage standing wave ratio 1.3max
Insulation resistance 2000MΩ Min
Mechanical Dielectric Withstanding Voltage 750V AC rms  at 1 minute
Insertion force 2-7 N /Pin
Extraction force 0.5 N /Pin
Durability 500 cycles
Operating temperature -55°C to +125°C

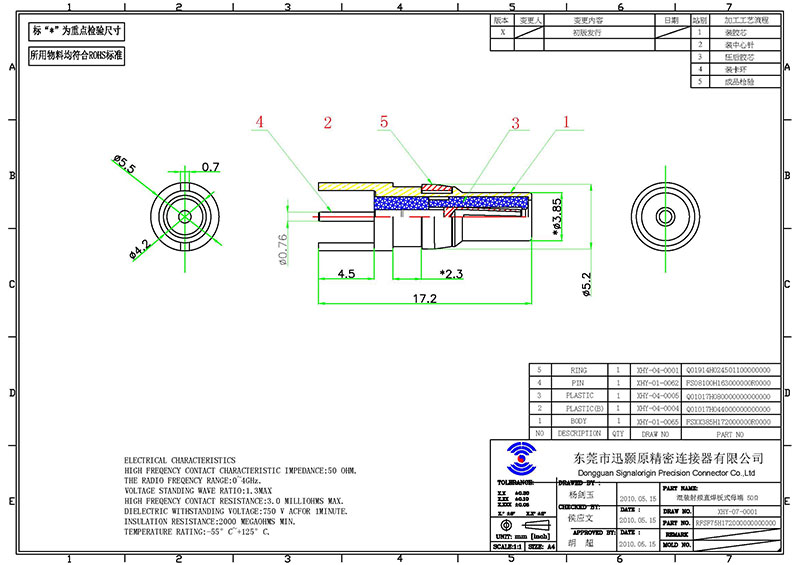

Drawing of coax d sub rf signal contact wholesale

Coax d sub rf signal contact wholesale

Variety of D-sub connectors

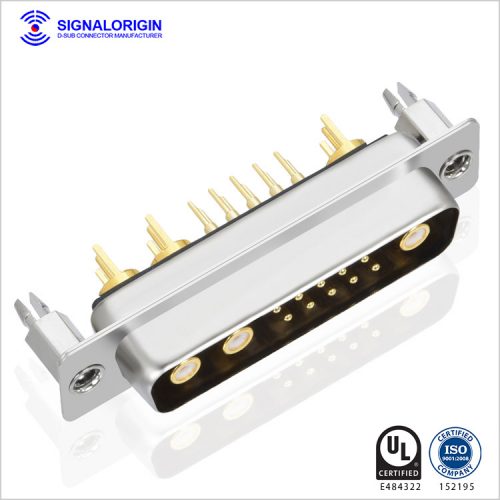

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
