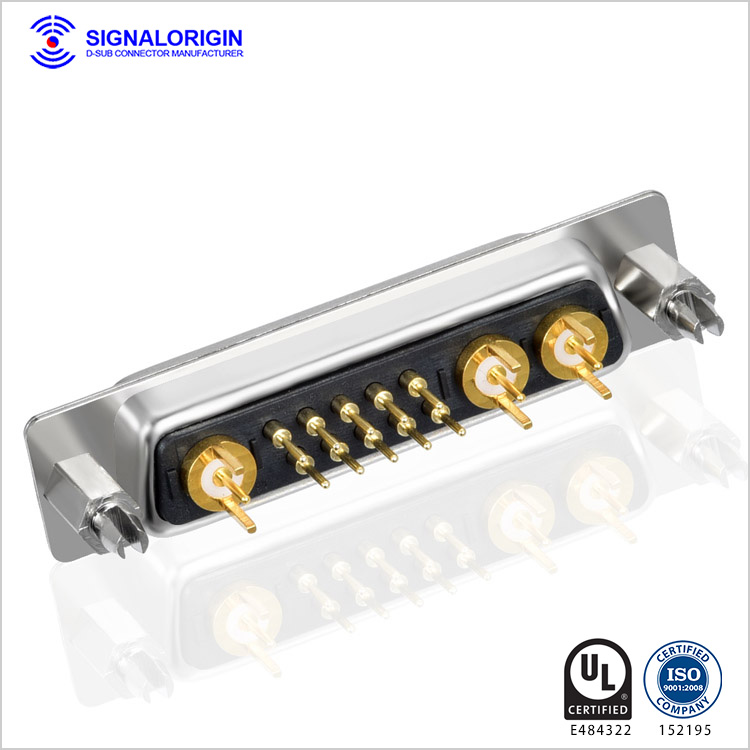

  • 13W3 male D sub coaxial connector

  • Insertable and removable coaxial, power, high voltage and signal contacts

  • Coaxial contact impedance: 50Ω+/-5Ω;75Ω+/-5Ω

  • Dielectric withstanding voltace: 750V AC rms  at 1 minute

  • All contacts are precision machined


13w3 male d sub coaxial connector wholesale. The Coaxial D-Sub with mixed layout mixes both coaxial contacts and signal contacts that it provides the ideal solution for applications to require power, signal and coaxial connections within one connector. The high freqency contact current rating of coaxial contacts is 50 or 75 ohm. You may like 13w3 female d-sub connector.

Specification of 13w3 male d sub coaxial connector

P/N XHY-05-2219


13w3 male d sub coaxial connector wholesale

13w3 male d sub coaxial connector wholesale

PDF Drawing Download


Material Insulator material PBT thermoplastic, 30% Glasss filled, UL94V- O
Insulator color Black/Blue (can be customized)
High frequency contact Copper alloy material, gold plated
Connector with signal contact Copper alloy, gold plated
Fork Copper alloy, Ni plated
Shell Material Steel/SPCC-SD, Nickel or tin plated
Electrical High frequency contact current rating 50 or 75 ohm
The radio frequency range 0~3Ghz
Connector with signal contact current rating 3 Amps
The working voltage 300V
Contact resistance 10 milliohms mas
Mechanical Dielectric Withstanding Voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of 13w3 male d sub coaxial connector
