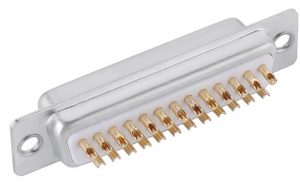

D-sub 25 pin female connector solder cup type

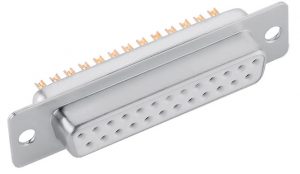

D-sub 25 pin female connector solder cup type

  • Safety UL certification and ISO 9001 Quality standard

  • Solder cup standard mating types

  • Contacts are precision machined

  • Personal and friendly customer service

  • D-sub with flexibility, durability, sealability

Description

SIGNALORIGIN is the D-sub 25 pin female connector solder cup type manufacturer. Our D-sub connector range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions. Suitable for military, aerospace, industrial, medical, telecom and computer applications. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application. You may like What is DB25

What type of port is a female DB25 connector?

Specification of D-sub 25 pin female connector solder cup type

P/N XHY-06-0002












D-sub 25 pin female connector solder cup type

D-sub 25 pin female connector solder cup type







PDF Drawing Download

     Material Insulator material PBT+30% G. F(UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold flash over nickel, 1U”-30U”
Shell material SPCC, NICKEL/TIN plated
Screws Copper alloy/Ni plated
     Electrical Working voltage 300V
Contact current rating 5A (customized)
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min.at 500v DC
     Mechanical Dielectric strength 500V AC rms  for 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of D-sub 25 pin female connector solder cup type

D-sub connector 15 pin female solder cup type



Variety of D-sub connectors

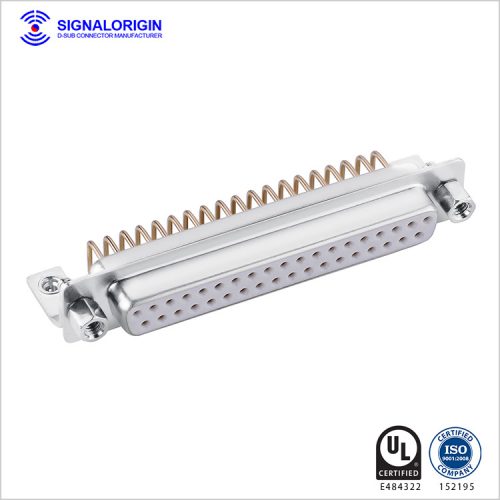

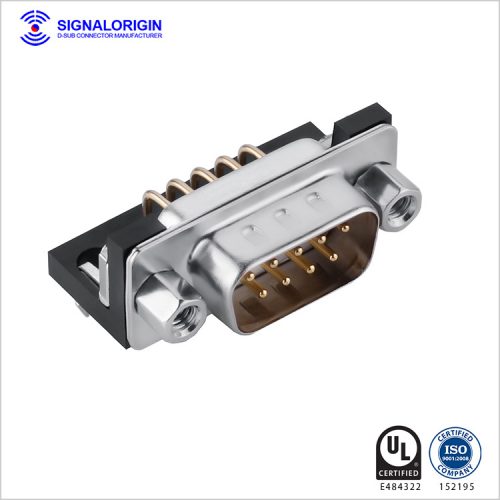

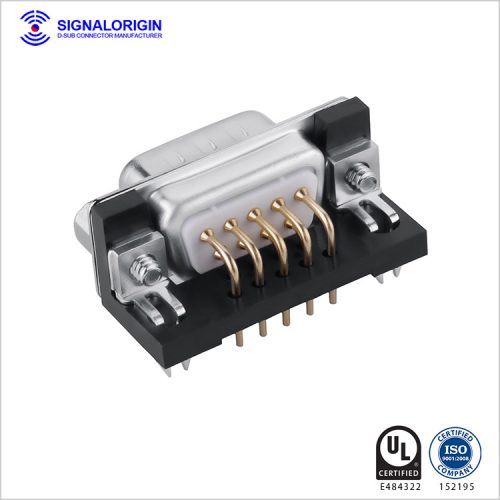

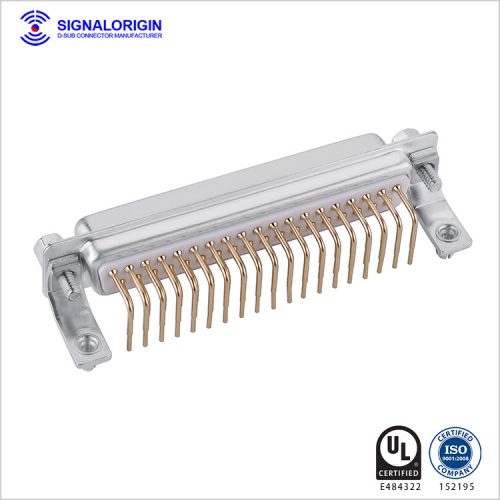

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008
