9W4 male combination layout d sub connectors

  • All contacts are precision machined

  • Hight freqency contact: copper alloy material, gold plated

  • The Power contacts are available with current rating ranging between 10A – 40A

  • Various quality d sub connectors classes are available

Inquiry Now

Description

9W4 male combination layout d sub connectors. Combination D-Sub with Mixed Layout, it provides the ideal solution for applications to require power, and signal within one connector. 9W4 D-Sub connector have 4pcs power contacts and and 5pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. You may like 9w4 female d-sub connector.

Specification of 9W4 male combination layout d sub connectors

P/N  XHY-05-1821

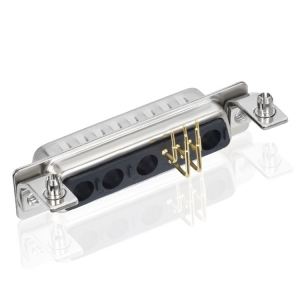

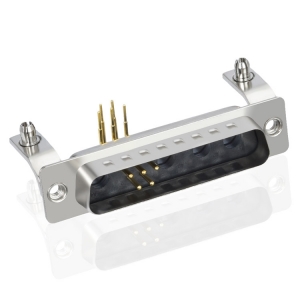

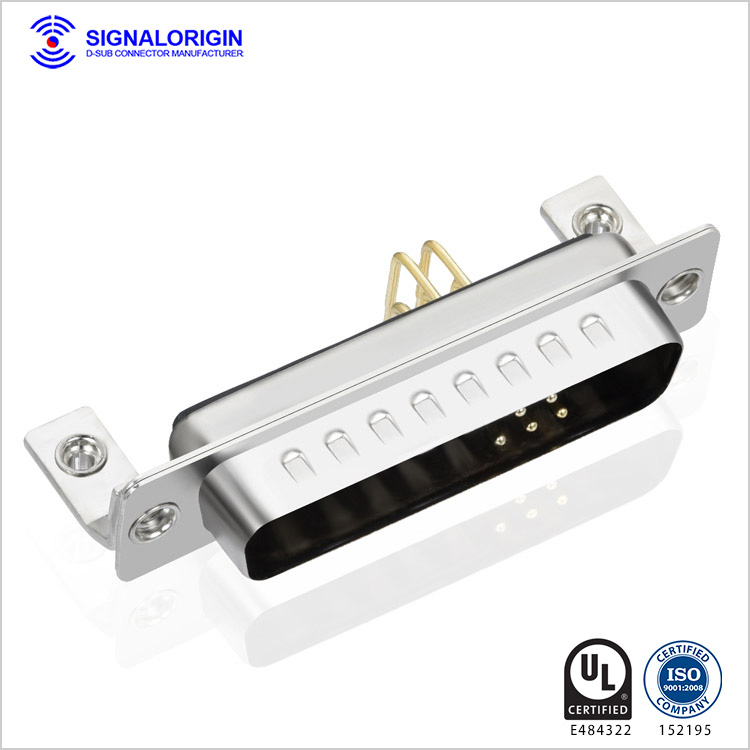

9W4 Male Combination Layout D Sub Connectors

9W4 Male Combination Layout D Sub Connectors

PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

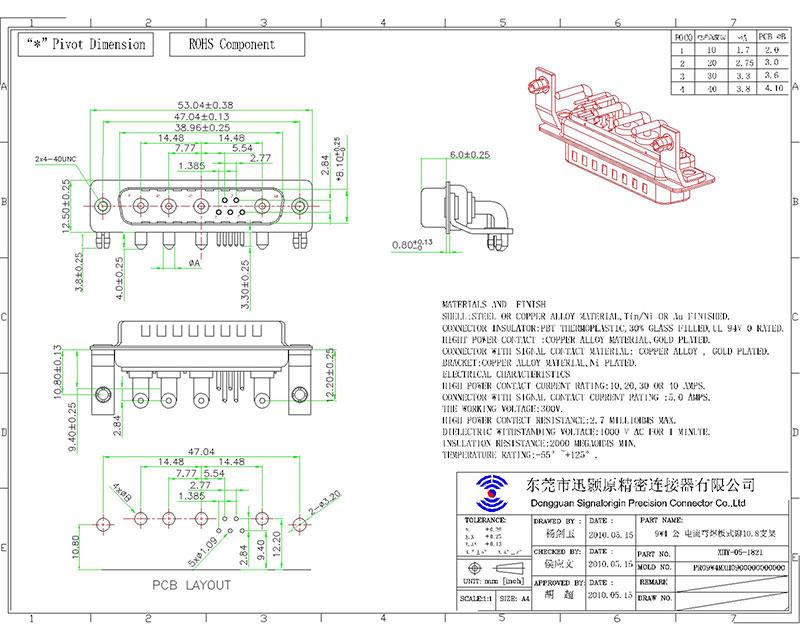

Drawing of 9W4 male combination layout d sub connectors

9W4 male combination layout d sub connectors

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
