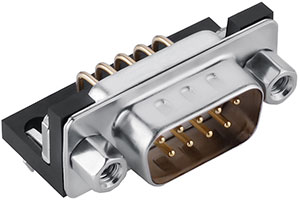

D-sub 9 pin male connector PCB right angle

D-sub 9 pin male connector PCB right angle

  • 9 pin male d sub connectors

  • High reliability and high density, All contacts are precision machined

  • Contact terminations can be solder cup, straight, right angle

  • RoHS & UL Compliant versions available


SIGNALORIGIN is the d-sub 9 pin male connector pcb right angle type manufacturer. Our D-sub connector range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions. Suitable for military, aerospace, industrial, medical, telecom and computer applications. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of D-sub 9 pin male connector PCB right angle

P/N XHY-06-0021

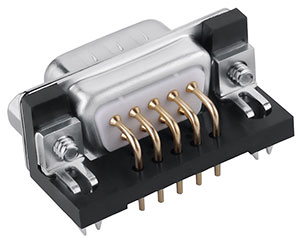

D-sub 9 pin male connector PCB right angle

D-sub 9 pin male connector PCB right angle


PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Phosphor copper
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 5 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric withstanding voltage 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

Drawing of D-sub 9 pin male connector PCB right angle

D-sub 9 pin male connector PCB right angle


Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008
