Power and signal d sub connector terminal wholesale

  • This d sub terminal is well connected

  • Adding the life of d-sub connector

  • All our contacts are RoHS & UL

  • Compliant versions available,Long service lifes

Inquiry Now

Description

Power and signal d sub connector terminal wholesale, contact is made of gold over nickel plated copper alloy, it is well connected and can add the life of d-sub connector. All our contacts are RoHS & non-RoHS Compliant versions available.

Specification of Power and signal d sub connector terminal wholesale

 P/N XHY-01-0196






power and signal d sub connector terminal wholesale

PDF Drawing Download

Material Contacts material Brass
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Electrical Working Voltage 250V AC
Contact resistance 3mΩ
Coaxial contact impedance 50Ω;75Ω
The radio frequency range 0~4ghz.
Voltage standing wave ratio 1.3max
Insulation resistance 2000MΩ Min
Mechanical Dielectric Withstanding Voltage 750V AC rms  at 1 minute
Insertion force 2-7 N /Pin
Extraction force 0.5 N /Pin
Durability 500 cycles
Operating temperature -55°C to +125°C

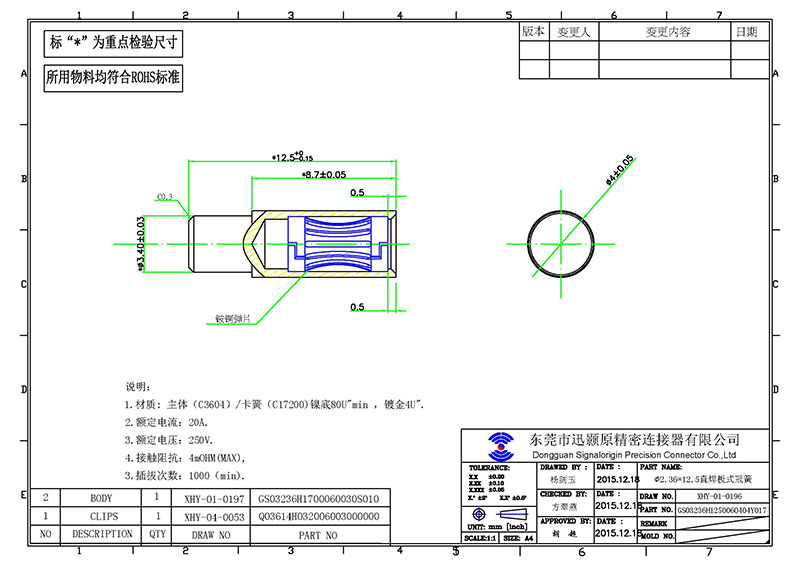

Drawing of power and signal d sub connector terminal wholesale

Power and signal d sub connector terminal wholesale

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
