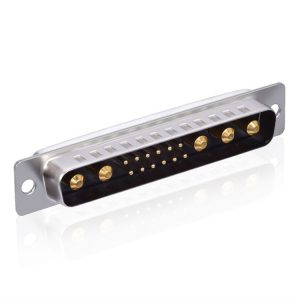

17W5 male solder cup d-sub combo connector

  • 17W5 male solder cup d-sub combo connector

  • All contacts are precision machined

  • Current Rating: 10, 20, 30, 40 A

  • Suitable for signal and high-end applications

Inquiry Now

Description

17W5 male solder cup d-sub combo connector. Our combo d sub-miniature conector comprises high quality, high reliability d-subs with the ability to mix signal, power, coax, high voltage air and thermocouple contacts in a single connector. Signalorigin’s combo d sub connectors feature multiple package sizes and contact variants as well as a wide range of accessories and options. You may like 17w5 female d-sub connector.

Specification of 17W5 male solder cup d-sub combo connector

P/N XHY-05-2801
17W5 male solder cup d-sub combo connector

17W5 male solder cup d-sub combo connector







PDF Drawing Download



Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Shell Material Steel/SPCC-SD, Nickel or tin plated
Electrical Working Voltage 300V AC
High Power Contacts Current Rating 10A-40A(customized)
Signal Contacts Current Rating 5A
High power contact resistance 2.7 milliohms max
Mechanical Dielectric Withstanding Voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

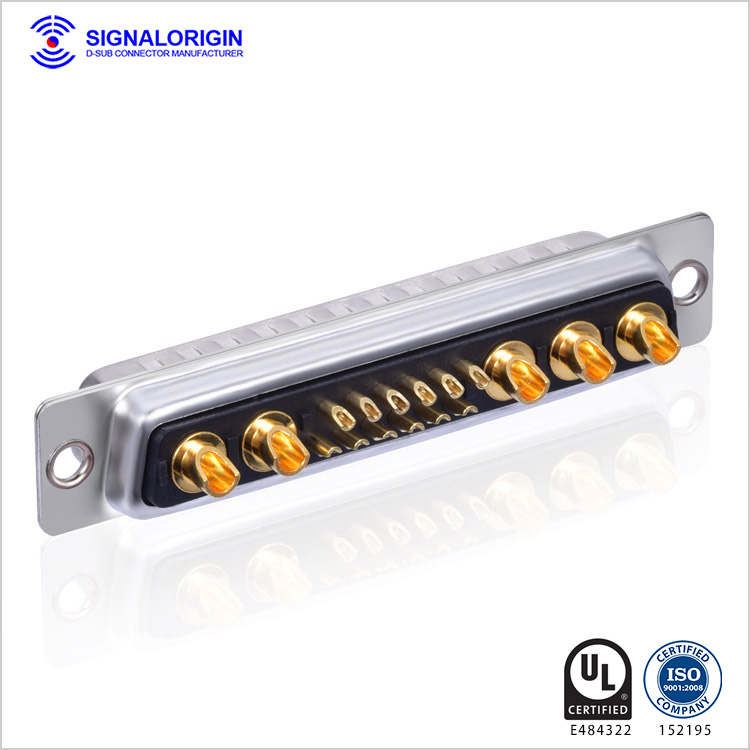

Drawing of 17W5 male solder cup d-sub combo connector17W5 male solder cup d-sub combo connector
