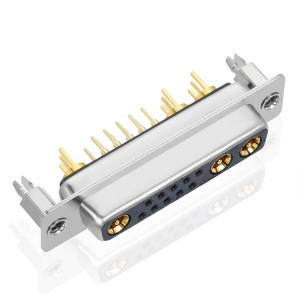

DB 13w3 female d sub coaxial computer video connector

  • Cost savings – mixed layout

  • Contact: Phosphor copper material, gold plated

  • All contacts are precision machined

  • Coaxial contact impedance: 50Ω+/-5Ω;75Ω+/-5Ω

  • Dielectric withstanding voltace: 750V AC rms  at 1 minute

Description

DB13w3 female d sub coaxial computer video connector. The Coaxial D-Sub is mixed signal, power, coax, high voltage air and thermocouple contacts in a single connector. 13w3, which means there is 13 contacts where 3 of them are coaxial contacts, which means there are 10 signal contacts, so 10 signals and 3 coaxial. The high freqency contact current rating of coaxial contacts is 50 or 75 ohm. You may like 13w3 male d-sub connector.

Specification of DB 13w3 female d sub coaxial computer video connector

P/N XHY-05-2220


DB 13w3 female d sub coaxial computer video connector

DB 13w3 female d sub coaxial computer video connector





PDF Drawing Download



Material Insulator material PBT thermoplastic, 30% Glasss filled, UL94V- O
Insulator color Black/Blue (can be customized)
High frequency contact Copper alloy material, gold plated
Connector with signal contact Copper alloy, gold plated
Fork Copper alloy, Ni plated
Shell Material Steel/SPCC-SD, Nickel or tin plated
Electrical High frequency contact current rating 50 or 75 ohm
The radio frequency range 0~3Ghz
Connector with signal contact current rating 3 Amps
The working voltage 300V
Contact resistance 10 milliohms mas
Mechanical Dielectric Withstanding Voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of DB 13w3 female d sub coaxial computer video connector DB 13w3 female d sub coaxial computer video connector
