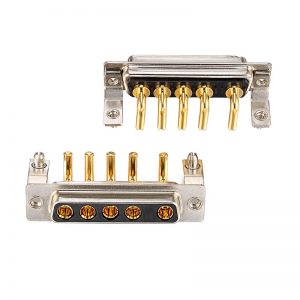

  • 5W5 female high current subminiature d connector, right angle

  • Shell: Steel/SPCC-SD, nickel or tin plated

  • Hight freqency contact: Phosphor copper alloy material, gold plated

  • All contacts are precision machined

Description

5W5 female high current subminiature d connector. 5w5 connector is essential to provide the actual connection interface between two devices. Such an important function relies on durable and reliable materials, manufacturing, and design. These connectors are made of the highest quality materials to ensure maximum operational efficiency during high intensity and mission critical applications. You may like 5w5 male d-sub connector.

Specification of 5W5 female high current subminiature d connector

P/N  XHY-05-1028


5W5 female high current subminiature d connector



PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High power contact current rating 10, 20, 30, 40 A (can be customized)
The working voltage 300V
High power contact resistance 10 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

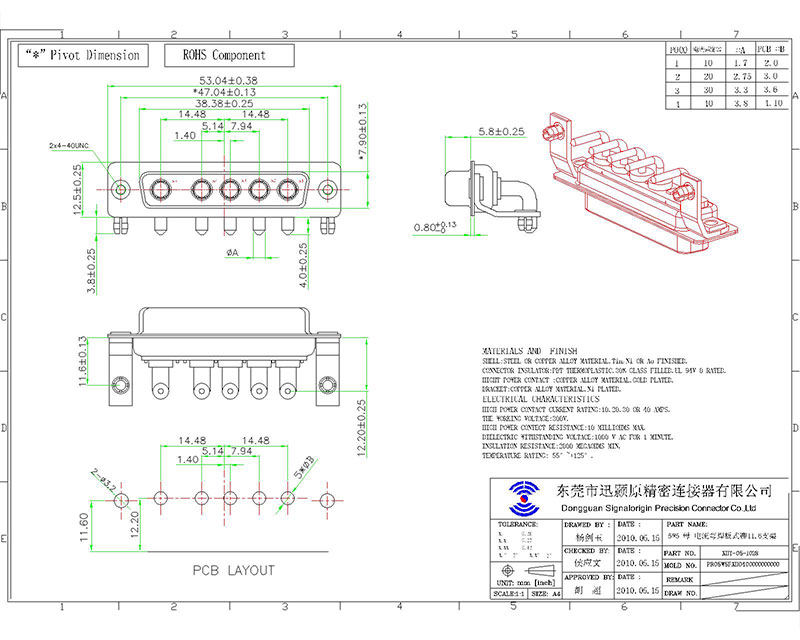

Drawing of 5W5 female high current subminiature d connector

5W5 female high current subminiature d connector
