9w4 male righ angle coaxial conec d-sub connectors wholesale

  • High frequency contact current rating:  50 or 75 ohm

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Inquiry Now

Description

SIGNALORIGIN 9w4 male righ angle coaxial conec d-sub connectors wholesale. The mixed layout Combo D-sub connector combines signal, power (up to 40 Amp), and RF Combo d-sub connectors coaxial (50 and 75 Ohm) contacts within a variety of industry standard D shell sizes. This connector achieves space saving on PCB’s and I/O designs.
Our complete line of D-subminiature connectors ranges from standard D-sub connectors, High density D-sub Connectors, Combo D-sub connectors, High power d sub connector, Dual port d-sub, D-sub coaxial connector and waterproof D-sub connectors and more.

Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of 9w4 male righ angle coaxial conec d-sub connectors wholesale

P/N XHY-05-1832










9w4 male righ angle coaxial conec d-sub connectors wholesale

9w4 male righ angle coaxial conec d-sub connectors wholesale







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
High frequency contact Copper alloy material, gold plated
Connector with signal contact material Copper alloy, gold plated
Shell material Copper alloy, gold plated
Bracket/Screw Copper alloy material, Ni plated
     Electrical High frequency contact current rating  50 or 75 ohm
The radio frequency 0~3GHz
Connector with signal contact current rating 5A
The working voltage 300V
High frequency contact resistance 10 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of 9w4 male righ angle coaxial conec d-sub connectors wholesale

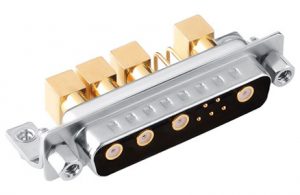

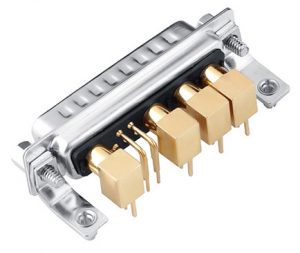

9W4 male right angle coaxial d-sub connectors



Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
