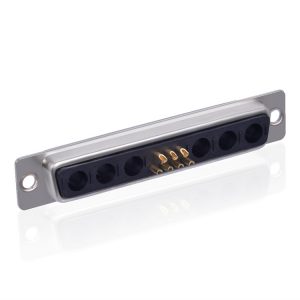

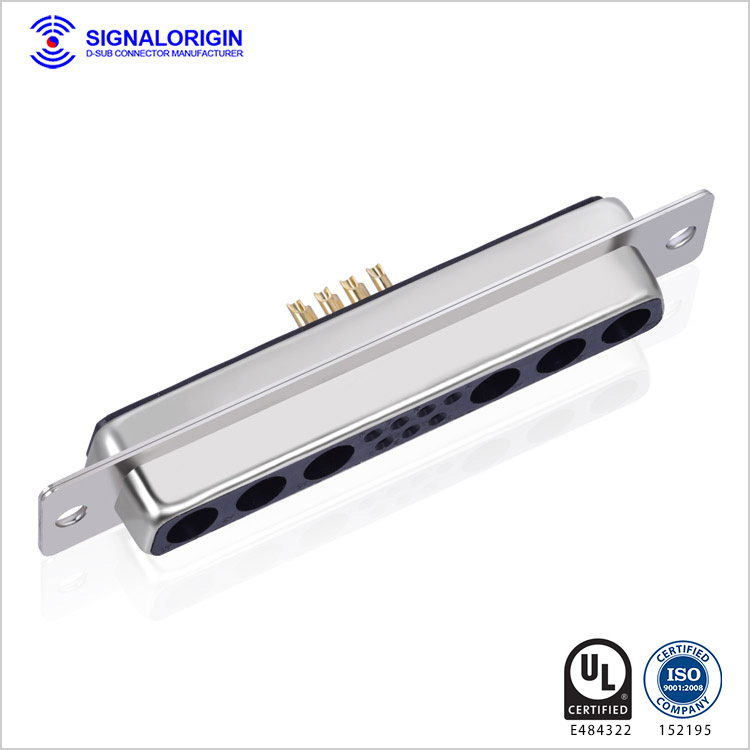

13w6 solder cup D-Sub mixed contact type d socket

  • Solder cup d type socket

  • Contact: Phosphor copper material, gold plated

  • All contacts are precision machined

  • Our connector can be perfectly compatible connectors

  • Contacts for currents of 10A to 40A can be customized

Inquiry Now

Description

13w6 solder cup D-Sub mixed contact type d socket, mixed power and signal contact, 6pcs power contacts and 7pcs signal contacts. Power contacts from 10 amp to 40 amp current handling. Signal contacts in various styles complete the product offering. The solder cup d-sub connectors achieves space saving on PCB’s and I/O designs. You may like 13w6 male d-sub connector.

Specification of 13w6 solder cup D-Sub mixed contact type d socket

P/N XHY-05-2402


13w6 solder cup D-Sub mixed contact type d socket

13w6 solder cup D-Sub mixed contact type d socket

PDF Drawing Download







     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 5A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

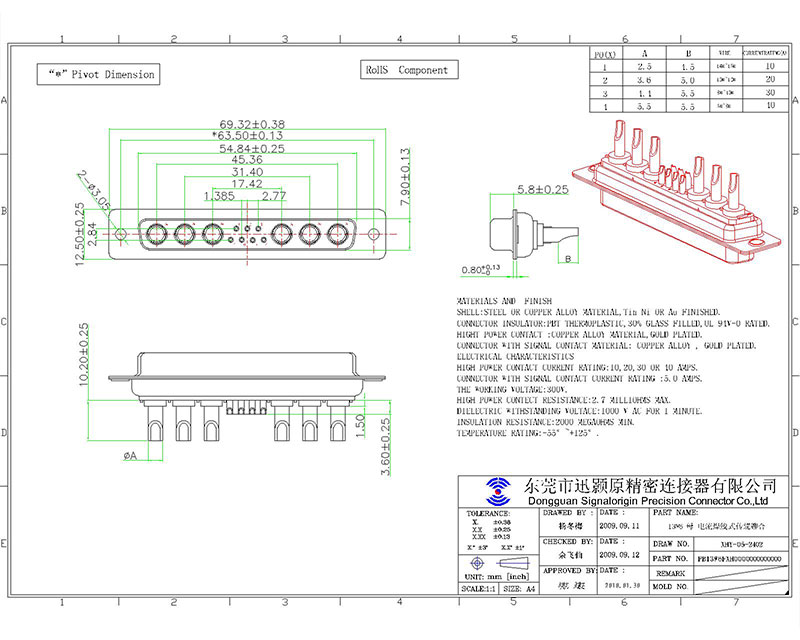

Drawing of 13w6 solder cup D-Sub mixed contact type d socket13w6 solder cup D-Sub mixed contact type d socket
