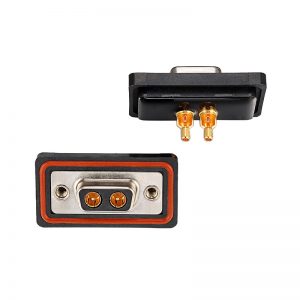

2W2 d sub coaxial cable female connector supplier

  • 2W2 d sub coaxial cable female connector

  • Waterproof and dust proof can reach to IP67

  • Allows signal, coaxial,high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

Inquiry Now

Description

2W2 d sub coaxial cable female connector supplier. IP67 connectors in the solid body configuration meet the IP67 protection, this rated version well suited for outdoor harsh environment applications.A variety of mounting options are available, straight and right angle contact configurations are offered. You may like 2w2 male d-sub connector.

Specification of 2W2 d sub coaxial cable female connector supplier

P/N  XHY-05-0450




2W2 d sub coaxial cable female connector supplier



PDF Drawing Download



Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Shell Material Steel/SPCC-SD, Nickel or tin plated
Electrical Working Voltage 300V AC
Signal Contacts Current Rating 3A
Contact resistance 15mΩ Max
Coaxial contact impedance 50Ω+/-5Ω;75Ω+/-5Ω
Insulation resistance 2000MΩ Min.at 500v DC
Mechanical Dielectric Withstanding Voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

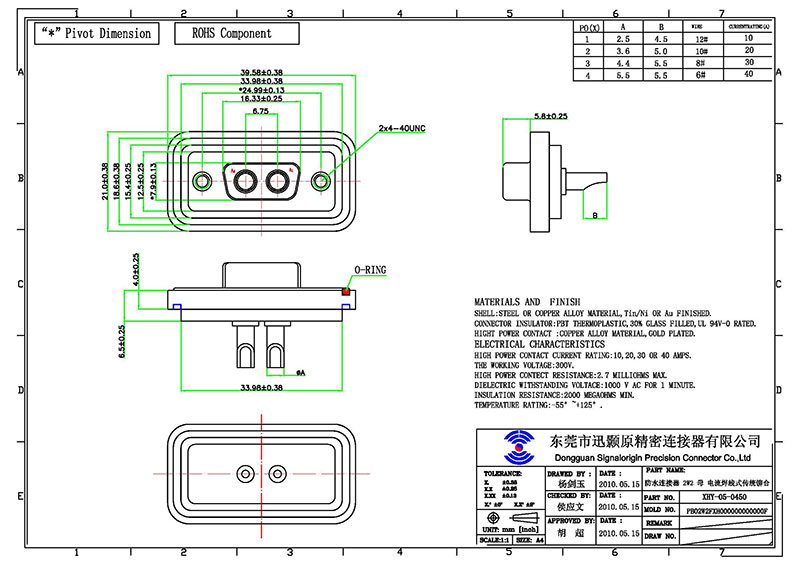

Drawing of 2W2 d sub coaxial cable female connector supplier

2W2 d sub coaxial cable female connector supplier
