37 pin d-sub connector plug right angle type

  • Safety UL certification and ISO 9001 Quality standard

  • PCB right angle types

  • Contacts are precision machined

  • Personal and friendly customer service

  • D-sub with flexibility, durability, sealability

Inquiry Now


SIGNALORIGIN is the 37 pin d-sub connector plug right angle type supplier. This high density connector are available in 7 industry sizes/positions (9, 15, 25, 37, 50, 68, 78). Non-removable contacts, Tin shells have indents to provide grounding and additional retention. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.
This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of 37 pin d-sub connector plug right angle type

P/N XHY-06-0023

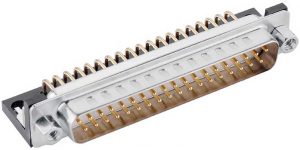

37 pin d-sub connector plug right angle type

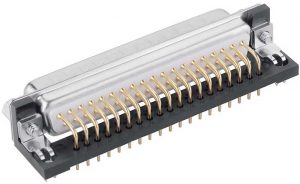

37 pin d-sub connector plug right angle type









PDF Drawing Download

     Material Insulator material PBT+30% G. F(UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold flash over nickel, 1U”-30U”
Shell material SPCC
Shell plated Nicker/Tin
     Electrical Working voltage 300V
Contact current rating 5A (customized)
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min.at 500v DC
     Mechanical Dielectric strength 500V AC rms  for 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

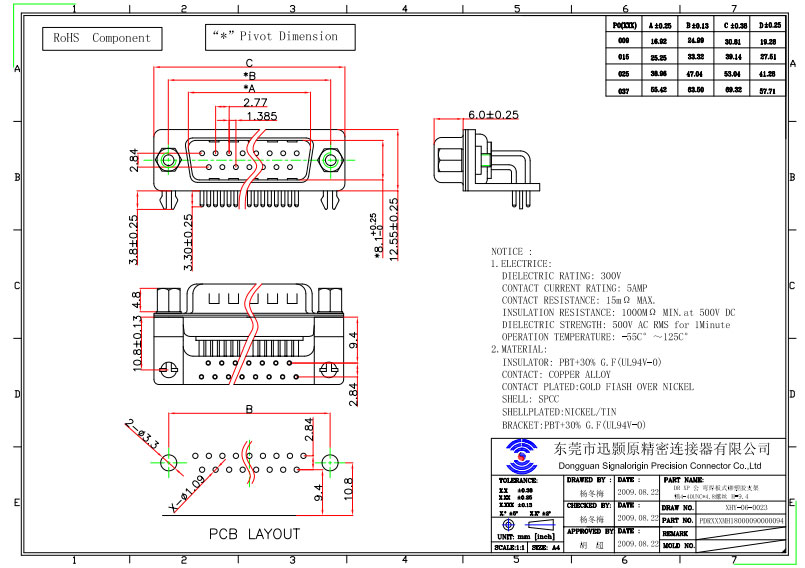

Drawing of 37 pin d-sub connector plug right angle type

37 pin d-sub connector plug right angle type
