Description

SIGNALORIGIN is the 8W8 D-sub coaxial connector male right angle type supplier. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.
This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

  • D-sub with flexibility, durability, sealability
  • The radio frequency: 0~3GHz
  • High current rating:10A, 20A, 30A, 40A customization
  • Safety UL certification and ISO 9001 Quality standard
  • Personal and friendly customer service
  • Comprehensive product size, and customization available
  • 3~5 set free sample are provide for you
  • Short-term products delivery, normally 3~7 days

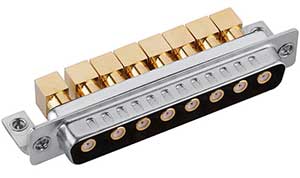

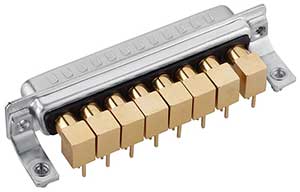

Specification of 8W8 D-sub coaxial connector male right angle type

P/N XHY-05-1626




8W8 D-sub coaxial connector male right angle type

8W8 D-sub coaxial connector male right angle type













PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy material
Contact plating Gold flash over nickel, 1U”-30U”
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High frequency contact current rating 50 or 75 ohm
The radio frequency 0~3GHz
Connector with signal contact current rating  5 A
The working voltage 300V
High frequency contact resistance 10 milliohms max
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

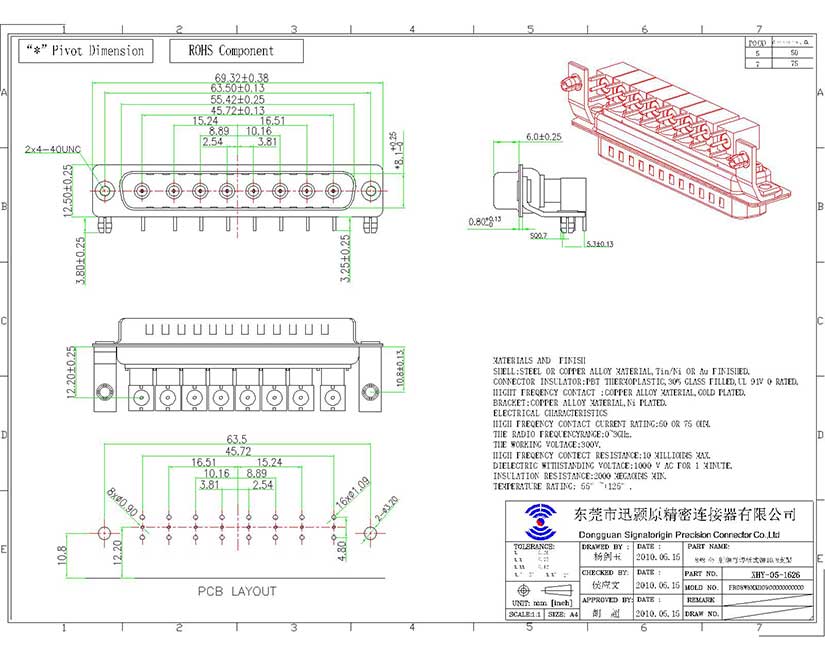

Drawing of 8W8 D-sub coaxial connector male right angle type

8W8 D-sub coaxial connector male right angle type

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
