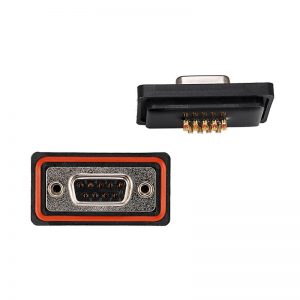

Waterproof solder 9 pin d type female connector

Waterproof solder 9 pin d type female connector

  • Meets IP67 Requirments

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Description

Waterproof solder 9 pin d type female connector. Waterproof D-Sub miniature connector ‘system’ includes standard D configuration as well as High Density, mixed layout, all of which can be used in applications where moisture, high humidity, water or dust could be a problem. You may like 9 pin male d-sub connectors.

Specification of Waterproof solder 9 pin d type female connector

P/N  XHY-06-0050


Waterproof solder 9 pin d type female connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

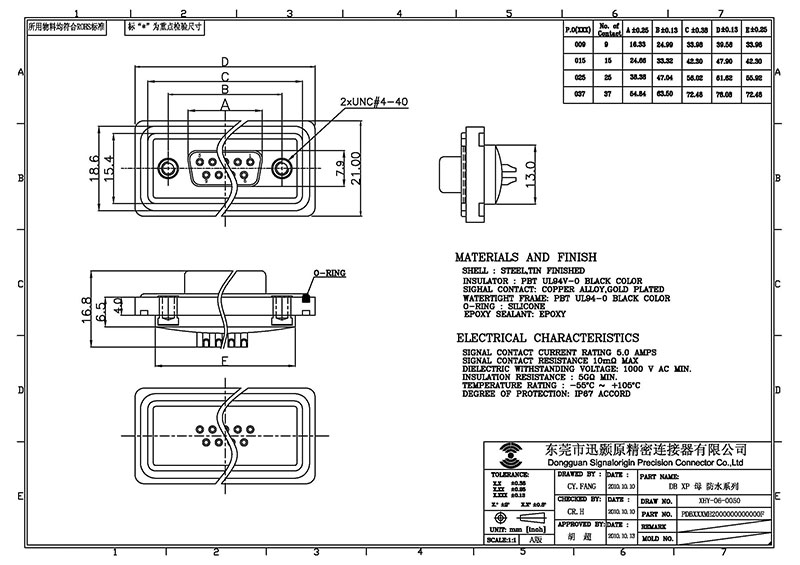

Drawing of waterproof solder 9 pin d type female connector

Waterproof solder 9 pin d type female connector
