5W5 male high current d sub right angle connector

  • 5W5 male high current d sub connector, right angle

  • All contacts are precision machined

  • The Power contacts are available with current rating ranging between 10A – 40A

  • Various quality d sub connectors classes are available

Inquiry Now

Description

5W5 male high current d sub right angle connector, with nickel plated bracket, insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. Machined contacts offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength. You may like 5w5 female d-sub connector.

Specification of 5W5 male high current d sub right angle connector

P/N XHY-05-1027


5W5 male high current d sub right angle connector



PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High power contact current rating 10, 20, 30, 40 A (can be customized)
The working voltage 300V
High power contact resistance 10 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

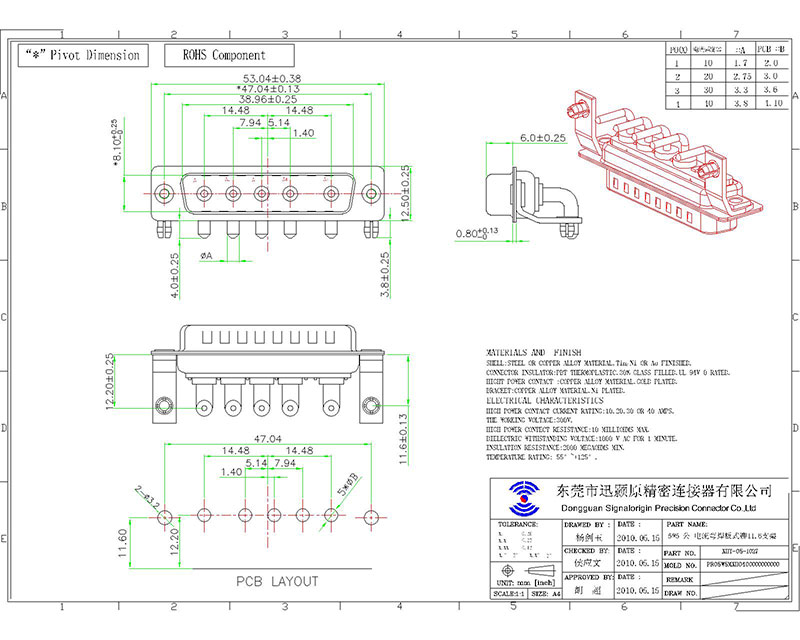

Drawing of 5W5 male high current d sub right angle connector
