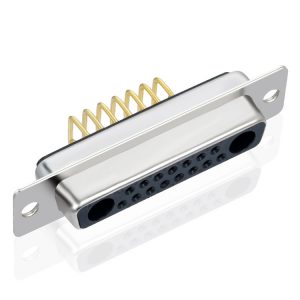

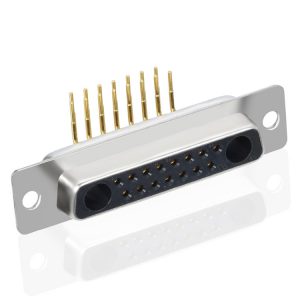

17W2 female d-sub mixed contact right angle pcb connector

  • All contacts are precision machined

  • Contact: Phosphor copper material, gold plated

  • Insertable and removable power, high voltage and signal contacts

  • Contacts for current can be customized from 10A to 40A

Inquiry Now

Description

17W2 female d-sub mixed contact right angle pcb connector. PCB combination d-sub connectors can come with all contacts fitted, eliminating the need to keep complicated piece part inventories and suiting them admirably for use in communication, computer, and test and measurement equipment applications. You may like 17w2 male d-sub connector.

Specification of 17W2 female d-sub mixed contact right angle pcb connector

P/N XHY-05-2606


17W2 female d-sub mixed contact right angle pcb connector

17W2 female d-sub mixed contact right angle pcb connector





PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

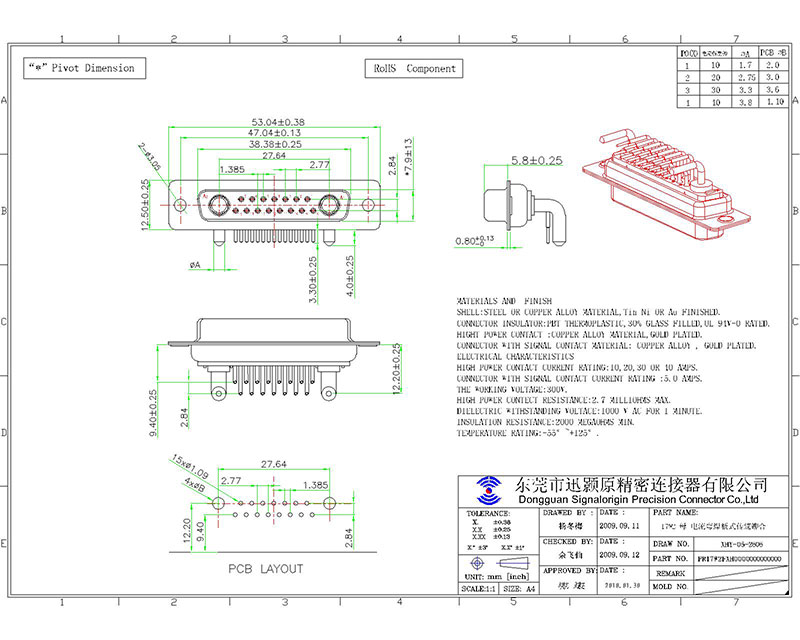

Drawing of 17W2 female d-sub mixed contact right angle pcb connector17W2 female d-sub mixed contact right angle pcb connector
