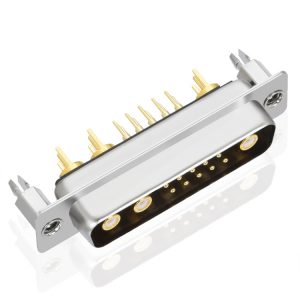

Combo D-SUB pcb type female 13w3 connector

  • 13w3 Combo D-SUB connector

  • All contacts are precision machined

  • Contact: Phosphor copper material, gold plated

  • Suitable for high current application

  • Contacts for current can be customized from 10A to 40A

Description

Combo D-SUB pcb type female 13w3 connector. This power D-Sub mixes both power contacts and signal contacts in the same connector or all contact is signal contacts. 13W3 have 3pcs power contacts and and 10pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.

Specification of Combo D-SUB pcb type female 13w3 connector

P/N XHY-05-2216
Combo D-SUB pcb type female 13w3 connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

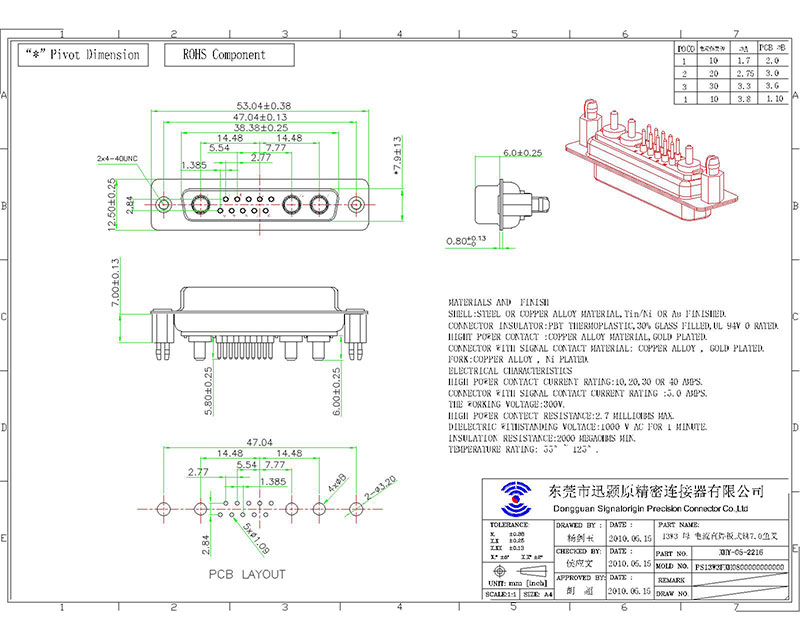

Drawing of Combo D-SUB pcb type female 13w3 connectorCombo D-SUB pcb type female 13w3 connector
