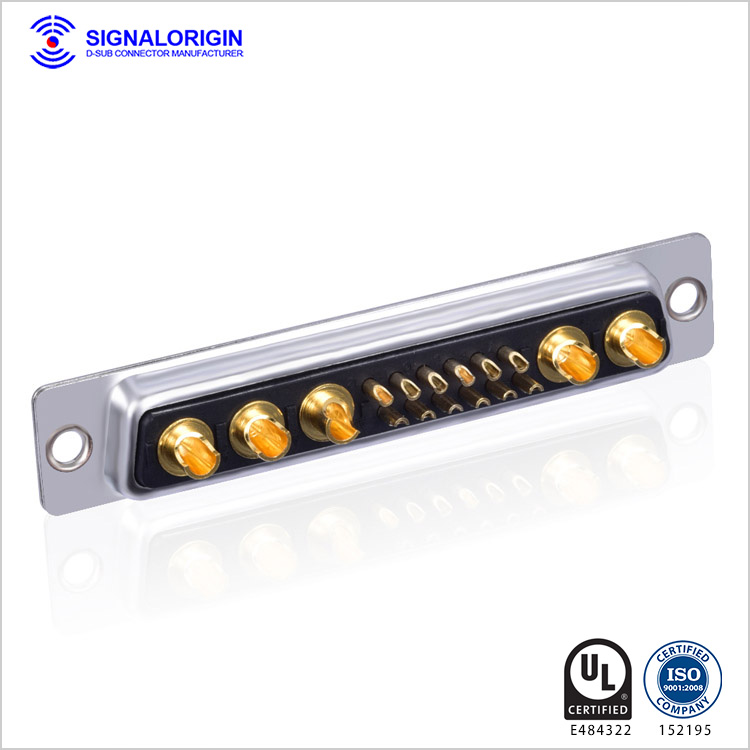

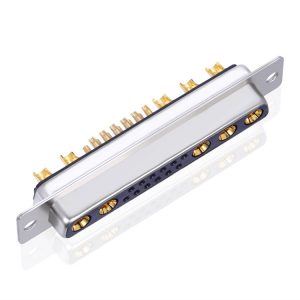

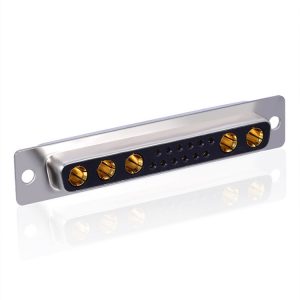

Combo D-SUB 17w5 Connector welding for cable

  • 17W5 mixed contact female D-sub connector

  • All contacts are precision machined

  • Contact: Phosphor copper material, gold plated

  • Suitable for high current application

  • Contacts for current can be customized from 10A to 40A

Inquiry Now

Description

Combo D-SUB 17w5 Connector welding for cable. Mixed contact connectors suitable for making combined signal and power connections. 17W5 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power contacts. Suitable for military, industrial or commercial applications and computer interfacing etc. You may like 17w5 male d-sub connector.

Specification of Combo D-SUB 17w5 Connector welding for cable

P/N  XHY-05-2802
Combo D-SUB 17w5 Connector welding for cable

Combo D-SUB 17w5Connector welding for cable







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 5A
High power contact resistance 2.7 milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

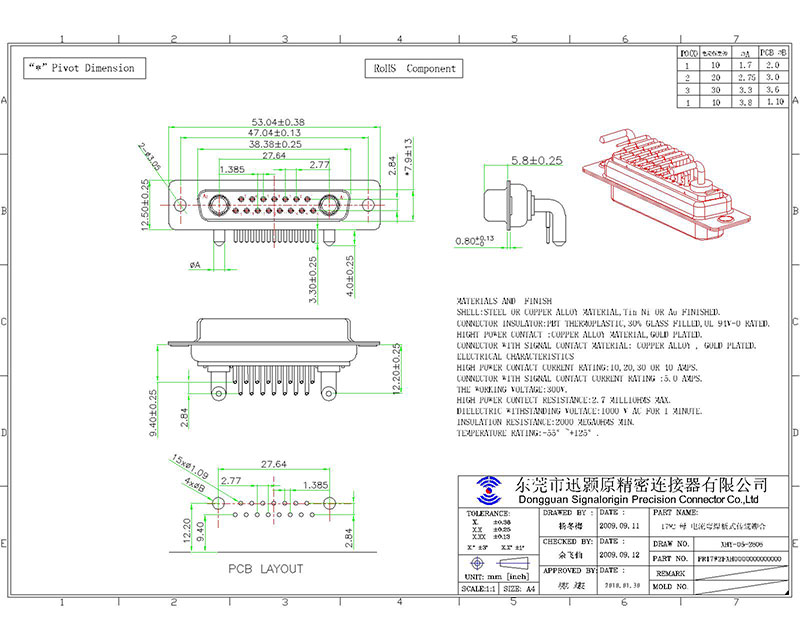

Drawing of Combo D-SUB 17w5 Connector welding for cableCombo D-SUB 17w5 Connector welding for cable
