17W2 female right angle combo d-sub connector supplier

  • All contacts are precision machined

  • Contact: Phosphor copper material, gold plated

  • Insertable and removable power, high voltage and signal contacts

  • Contacts for current can be customized from 10A to 40A

Inquiry Now

Description

SIGNALORIGIN is the 17w2 female right angle combo d-sub connector supplier. Combo D-sub Power Connector with gold-plated copper alloy contacts. The D-subminiature power connector range is a standard interface widely used in many market segments. The connector form factors are directly inspired by those of the traditional D-subminiature signal connectors, long used as standard I/O connectors in many types of electronic equipment. The power connectors are also principally used for I/O solutions because of their robust and shielded design. It is suitable for applications such as set-top box, energy meters and control devices.

Signalorigin offers an extensive line of D-Sub connector products to suit many applications. We stock solder D-sub connector, high density D-Sub connector, Coaxial D-Sub connector, waterproof D-Sub connector, and combinationD-Sub connector products. You may like 17w2 male d-sub connector.

Specification of 17w2 female right angle combo d-sub connector supplier

P/N XHY-05-2606

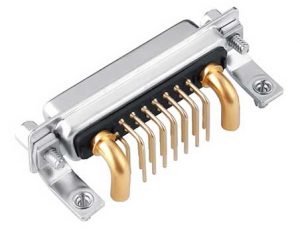

17w2 female right angle combo d-sub connector supplier

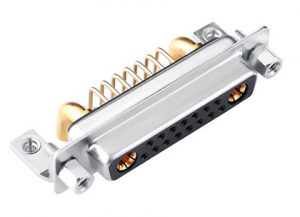

17w2 female right angle combo d-sub connector supplier





PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of 17w2 female right angle combo d-sub connector supplier17W2 female d-sub mixed contact right angle pcb connector

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
