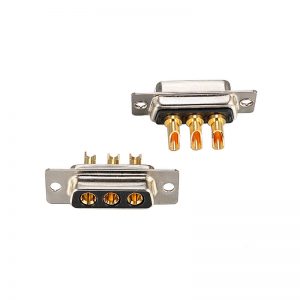

3W3 female combo d sub connector supplier

  • Hight freqency contact: Phosphor copper alloy material, gold plated

  • All contacts are precision machined

  • Dielectric withstanding voltace: 1000v ac for 1 minute

  • RoHS & UL Compliant versions available

Inquiry Now

Description

3W3 female combo d sub connector supplier. 3-position Signalorigin® D-sub Connector offers the familiar shape and functionality of a combination D-Subminiature connector with high current, high performance contact technology. This series connectors utilize the same front shells, rear shells and mounting features found on standard D-sub connectors, which means they are fully interchangeable on a PCB, panel or cable assembly. You may like 3w3 male d-sub connector.

Specification of 3W3 female combo d sub connector supplier

P/N XHY-05-0802


3W3 female combo d sub connector supplier



PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High power contact current rating 10, 20, 30, 40 A (can be customized)
The working voltage 300V
High power contact resistance 2.7 milliohms max
Contact resistance 15mΩ Max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

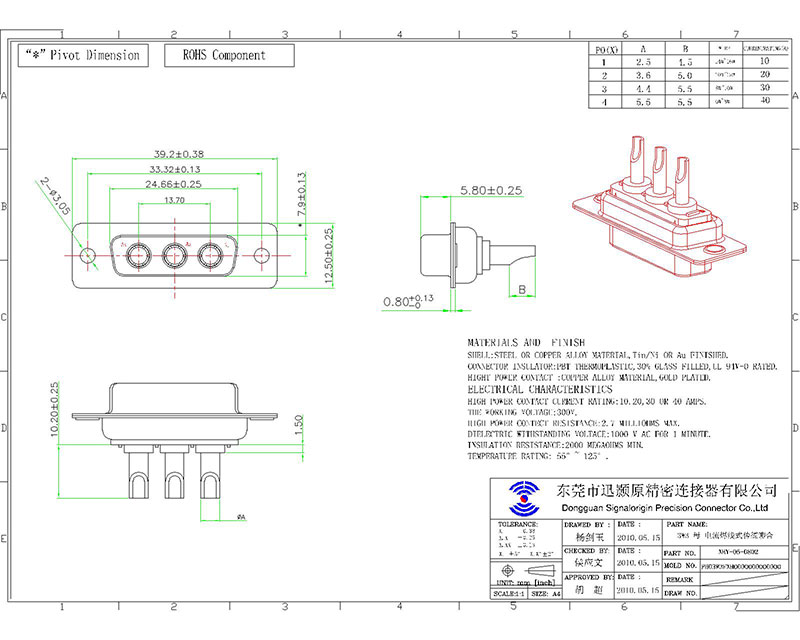

Drawing of 3W3 female combo d sub connector supplier

3W3 female combo d sub connector supplier

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
