17W2 D-sub coaxial female connector manufacturer

17W2 D-sub coaxial female connector manufacturer

  • D-sub with flexibility, durability, sealability

  • High frequency contact current rating: 50 or 75 ohm

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

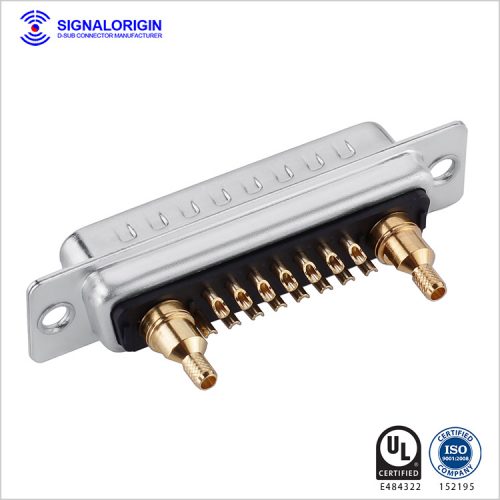

SIGNALORIGIN is the 17W2 D-sub coaxial female connector manufacturer. 17W2 female straight D-sub coaxial connector with bracket and screws. All contacts are machined processing, phosphor copper material, gold plated. 17W2 Coaxial D-Sub have 2 coaxial contacts. The impedance for the coaxial contacts are 50Ω or 75Ω.
Our complete line of D-subminiature connectors ranges from standard D-sub connectors, High density D-sub Connectors, Combo D-sub connectors, High power d sub connector, Dual port d-sub, D-sub coaxial connector and waterproof D-sub connectors and more.

Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of 17W2 D-sub coaxial female connector manufacturer

P/N XHY-05-2616





17W2 D-sub coaxial female connector manufacturer

17W2 D-sub coaxial female connector manufacturer






PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
High frequency contact Copper alloy material, gold plated
Connector with signal contact material Copper alloy, gold plated
Shell material Steel or copper alloy material, Tin/Ni or Au finished
Bracket and screws copper alloy material, Ni plated
     Electrical Working voltage 300V AC
High frequency contact current rating 50 or 75 ohm
Connector with signal contact current rating 5A
The radio frequency 0~3GHz
High frequency contact resistance 10 milliohms max
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of 17W2 D-sub coaxial female connector manufacturer

17W2 D-sub coaxial female connector manufacturer

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008

About us

We are specializing in designing and producing D-Sub Connectors. We have more than 10 years rich experiences in the electronic industry. In addition. Signalorigin is a brand company of Yang Ming precision electronic company, which has established a long-term strategic cooperative relation of our top 10 companies and these companies have years of experiences in our markets.
