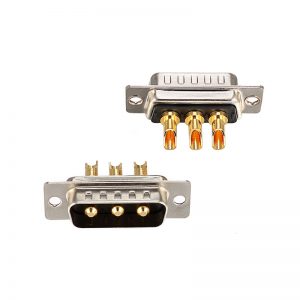

High current male combo D-sub 3w3 Connector

  • 3w3 mixed contact D-sub connector

  • All contacts are precision machined

  • Gold plating options available,Suitable for high current application

  • Current Rating: 10, 20, 30, 40 A

Inquiry Now

Description

High current male combo D-sub 3w3 Connector , steel-tin/nickel-plated shell, high temperature white thermoplastic insulator, machined contacts offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength. For the best price/performance ratio, multiple performance options of our products are available as well as RoHS and non-RoHS compliant versions. You may like 3w3 female d-sub connector.

Specification of High current male combo D-sub 3w3 Connector

P/N  XHY-05-0801


High current male combo D-sub 3w3 Connector



PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High power contact current rating 10, 20, 30, 40 A (can be customized)
The working voltage 300V
High power contact resistance 2.7 milliohms max
Contact resistance 15mΩ Max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

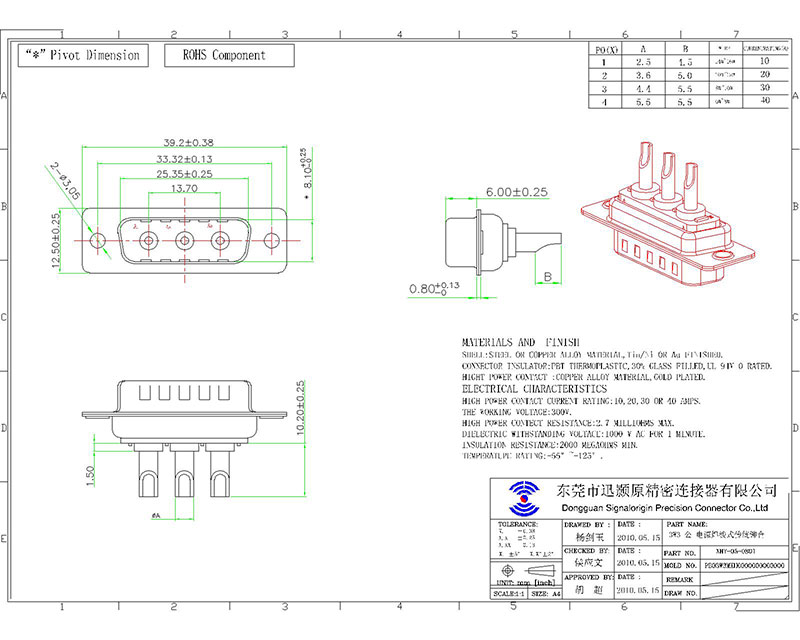

Drawing of High current male combo D-sub 3w3 Connector

High current male combo D-sub 3w3 Connector

Variety of D-sub connectors

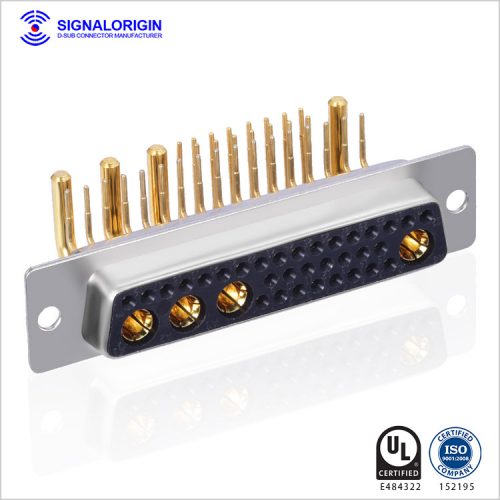

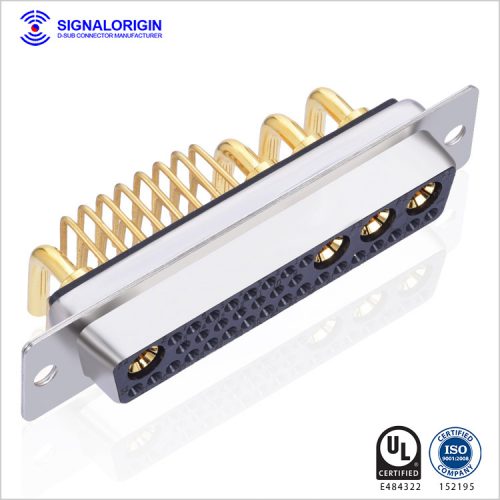

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
