36W4 high current female d sub mixed contact connectors

  • 36W4 d sub mixed contact connectors, high current

  • All contacts are precision machined

  • Hight freqency contact: phosphor copper, gold plated

  • Our connector can be perfectly compatible connectors

  • The Power contacts are available with current rating ranging between 10A – 40A

Inquiry Now

Description

36W4 high current female d sub mixed contact connectors, right angle dip type currenting rating=30AD. The d sub connector is essential to provide the actual connection interface between two devices. This type connectors are ideally suited for applications such as military equipment, ground support devices, computer peripheral equipment, modems, and industrial instrumentation. You may like 36w4 male d-sub connector.

Specification of 36W4 high current female d sub mixed contact connectors

P/N XHY-05-4226

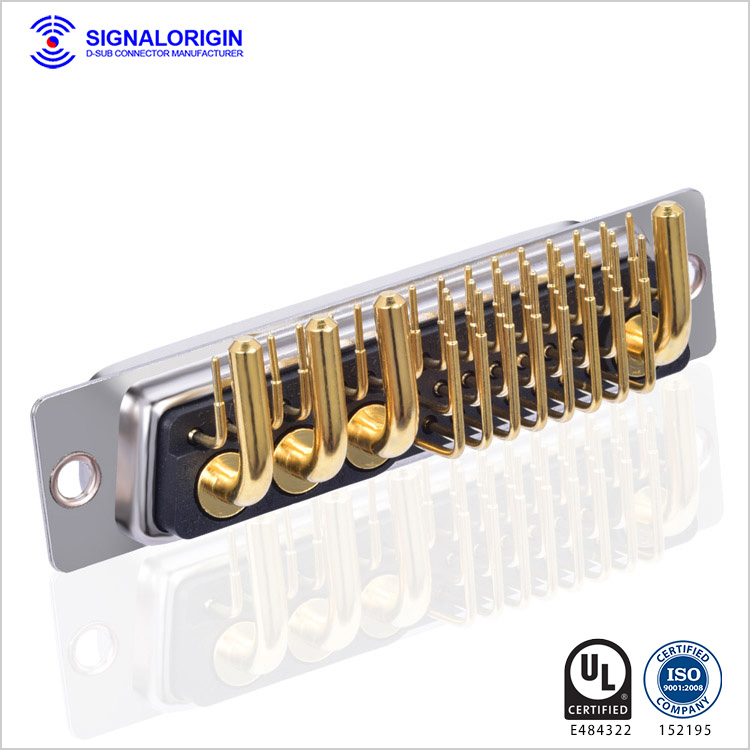

36W4 high current female d sub mixed contact connectors

36W4 high current female d sub mixed contact connectors







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 2.7 milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

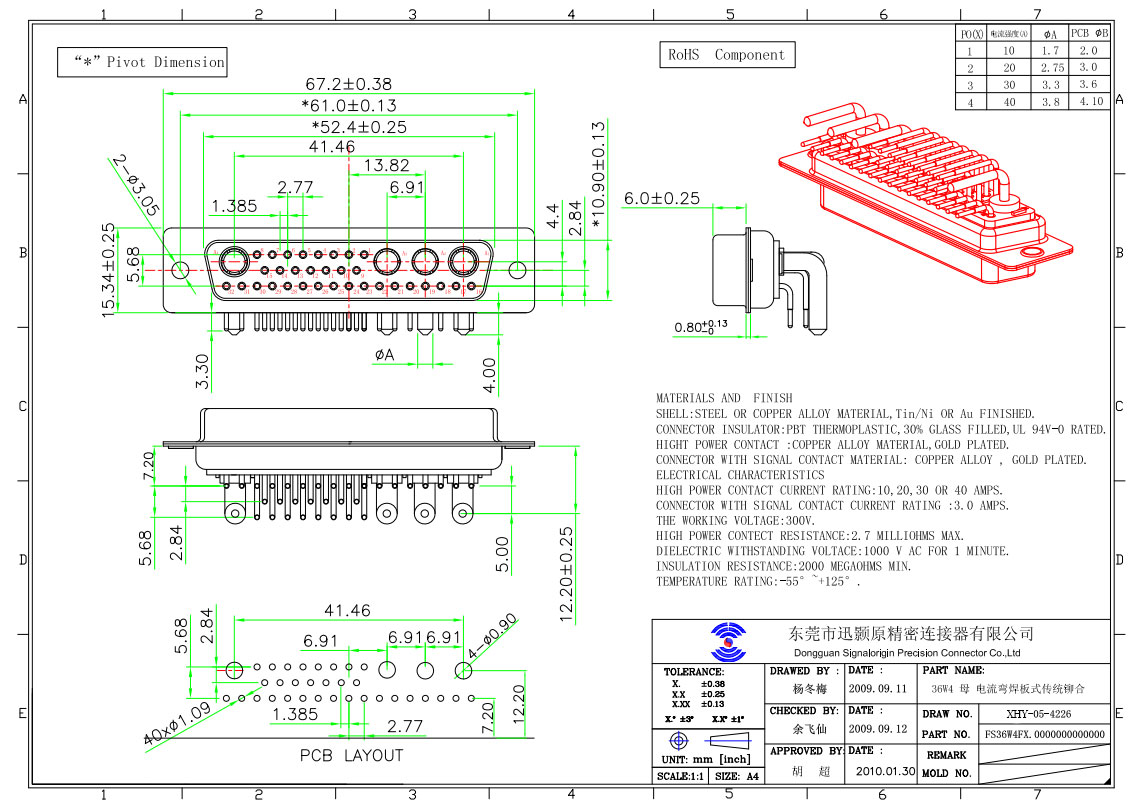

Drawing of 36W4 high current female d sub mixed contact connectors

36W4 Mixed contact right angle D-sub connector



Variety of D-sub connectors
