27W2 male solder cup power d sub connector

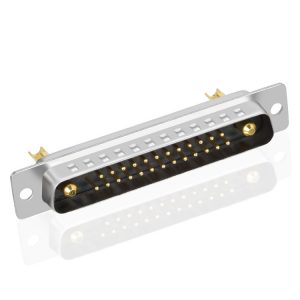

  • 27W2 male solder cup d sub connector

  • All contacts are machined copper alloy, full plated

  • Contacts for currents of 10A to 40A can be customized

  • Our connector can be perfectly compatible connectors

Inquiry Now

Description

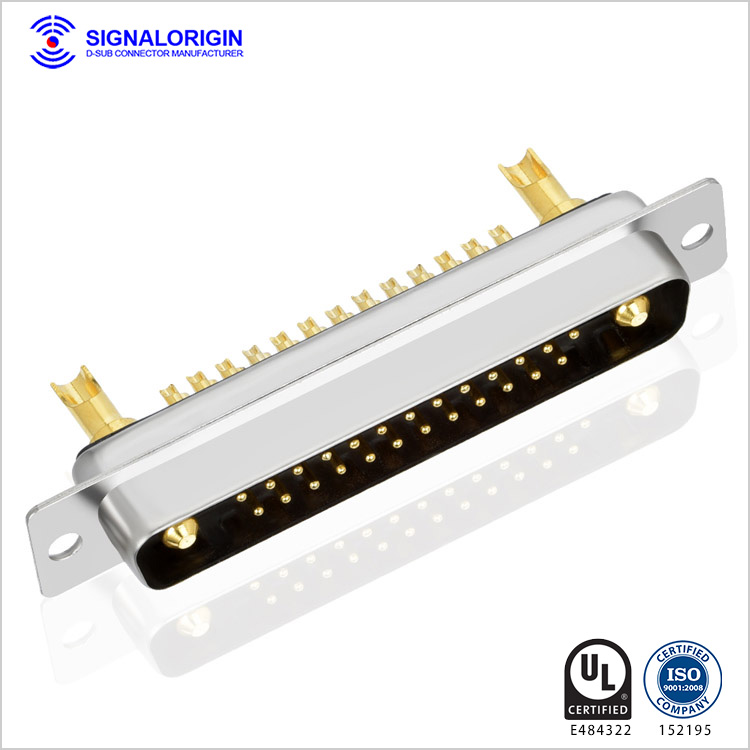

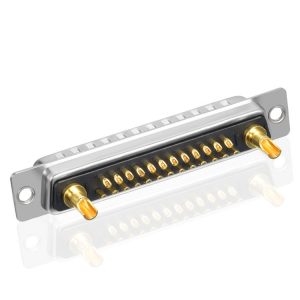

27W2 male solder cup power d sub connector. Mixed power and signal contact, 2pcs power contacts and 25pcs signal contacts. All contacts are machined copper alloy, full gold flash. The power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. You may like 27w2 female d-sub connector.

Specification of 27W2 male solder cup power d sub connector

P/N  XHY-05-3801
27W2 male solder cup power d sub connector

27W2 male solder cup power d sub connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 5A
Contact resistance 2.7 milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

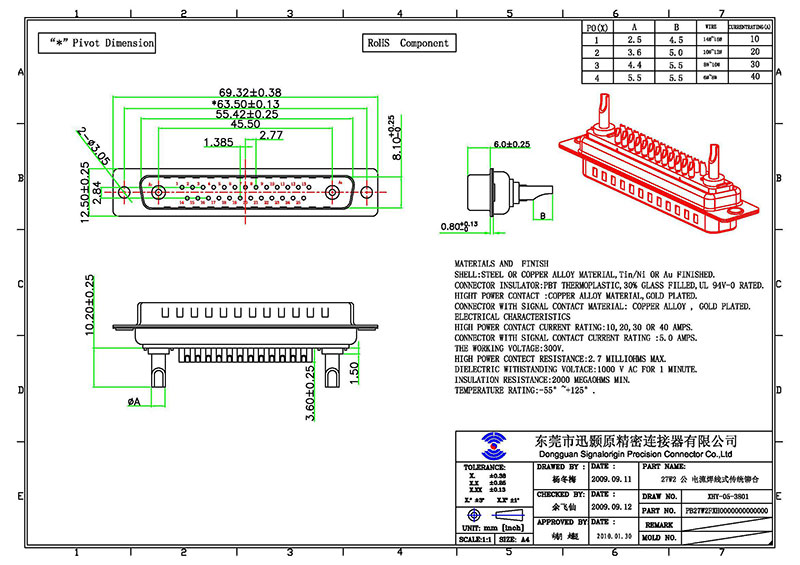

Drawing of 27W2 male solder cup power d sub connector

27W2 male solder cup power d sub connector
