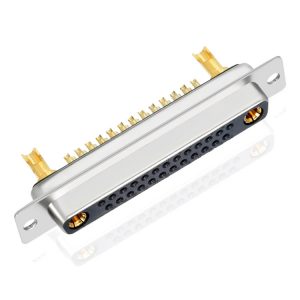

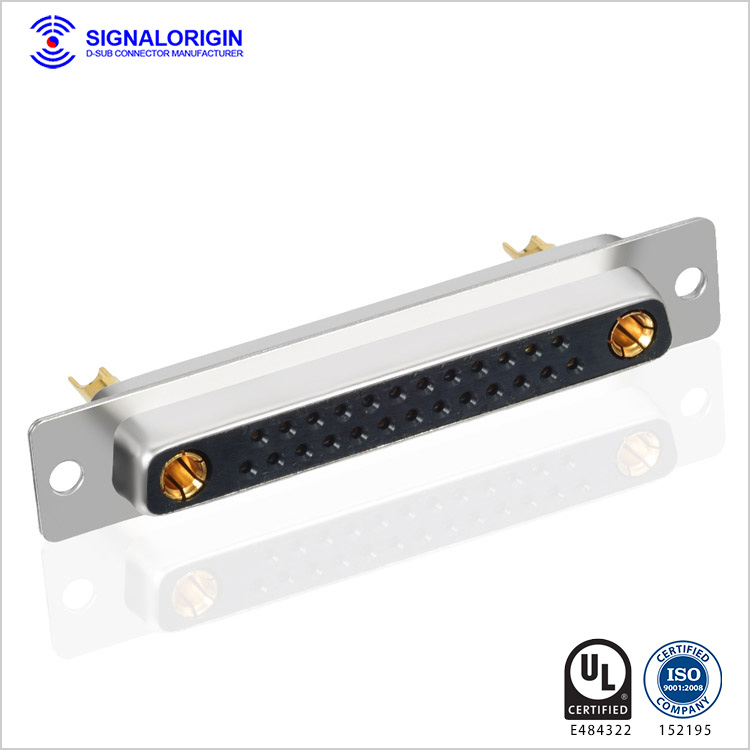

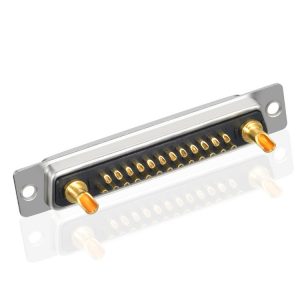

27W2 female combination d sub connectors for sale

  • 27W2 female combination d sub connectors

  • All contacts are precision machined

  • Gold plating options available

  • Our connector can be perfectly compatible connectors

  • Contacts for current can be customized from 10A to 40A

Inquiry Now

Description

27W2 female combination d sub connectors for sale. There are a variety of different configurations are available in male and female connectors. Standard mating types such as solder cup, solder pin (straight and right angle), wire wrap and crimp are available. 27W2 combination d sub connectors, mixed power and signal contact, 2pcs power contacts and 25pcs signal contacts. Contacts are machined and gold plating. You may like 27w2 male d-sub connector.

Specification of 27W2 female combination d sub connectors for sale

P/N XHY-05-3802


27W2 female combination d sub connectors for sale

27W2 female combination d sub connectors for sale







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 5A
Contact resistance 2.7 milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of Combo D-SUB pcb type female 13w3 connector

27W2 female combination d sub connectors for sale

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
