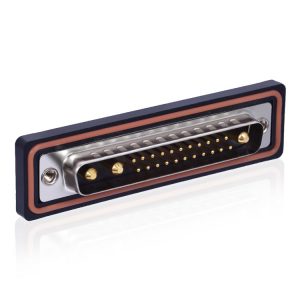

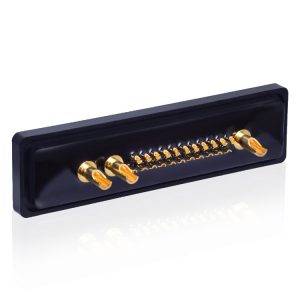

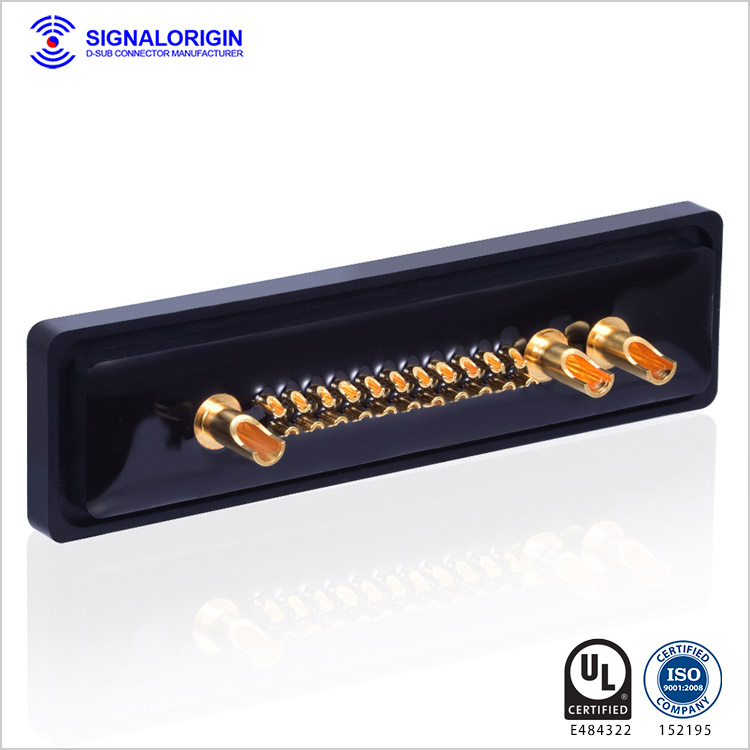

25W3 waterproof High current D-SUB solder cup connector

  • 25W3 solder cup d-sub connector, waterproof and high current

  • All contacts are machined copper alloy, full plated

  • Hight freqency contact:copper alloy material, gold plated

  • Our connector can be perfectly compatible connectors

Inquiry Now

Description

25W3 waterproof High current D-SUB solder cup connector. The high current connectors are designed around the standard D-Sub shell sizes with the possibility to have a blend of contacts. Fully shielded, the high current versions reduce EMI/RFI leakage. All contacts are machined with gold platings. And this solder cup d-sub connector is waterproof designed. You may like 25w3 female d-sub connector.

Specification of 25W3 waterproof High current D-SUB solder cup connector

P/N  XHY-05-3601


25W3 waterproof High current D-SUB solder cup connector

25W3 waterproof High current D-SUB solder cup connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

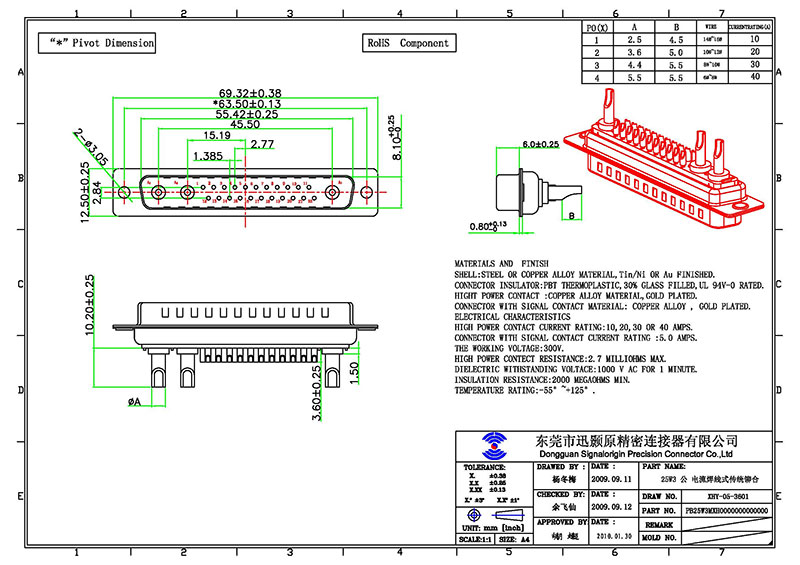

Drawing of 25W3 waterproof High current D-SUB solder cup connector
