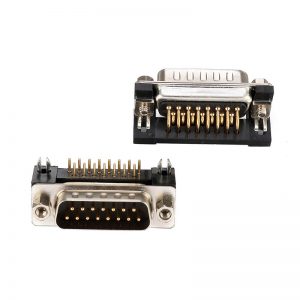

Right angle pcb d-sub 15pin connector

All contacts are precision machined
Shell: Shell: Steel/SPCC-SD, nickel or tin plated
Hight freqency contact: copper alloy material, gold plated
RoHS & UL Compliant versions available
PDF Drawing Download

Categories: Agriculture & Construction Equipment, Communication, Harsh Environment, Machine Manufacturing, Medical, Robotics & Automation, Standard D-sub Connectors, Transportation Tags: d sub 15pin, d sub connector, right angle pcb connector

Description

Description

These Right angle pcb d-sub 15pin connector, IP 67 connector is in standard shell sizes providing up to contacts and standard mating types such as solder cup, solder pin (straight and right angle) are available. And a variety of different configurations are available in male and female connectors. You may like 15 pin female d-sub connectors.

Specification of Right angle pcb d-sub 15pin connector

P/N	XHY-06-0021
PDF Drawing Download	Material	Insulator material	PBT+30% G.F (UL94V-O)
		Insulator color	Black/Blue (can be customized)
		Contacts material	Copper alloy
		Contact plating	Gold finish over nickel
		Shell material	Steel/SPCC-SD, nickel or tin plated
	Electrical	Dielectric rating	300V AC
		Current rating	5 AMP
		Contacts OD	∮1.0
		Contact resistance	15mΩ Max
		Insulation resistance	1000MΩ Min
	Mechanical	Dielectric withstanding voltage	500V AC rms at 1 minute
		Insertion force	∮1.0 : 0.6～2 N /Pin
		Extraction force	∮1.0: 0.3 N /Pin min
		Durability	500 cycles
		Operating temperature	-55°C to +125°C

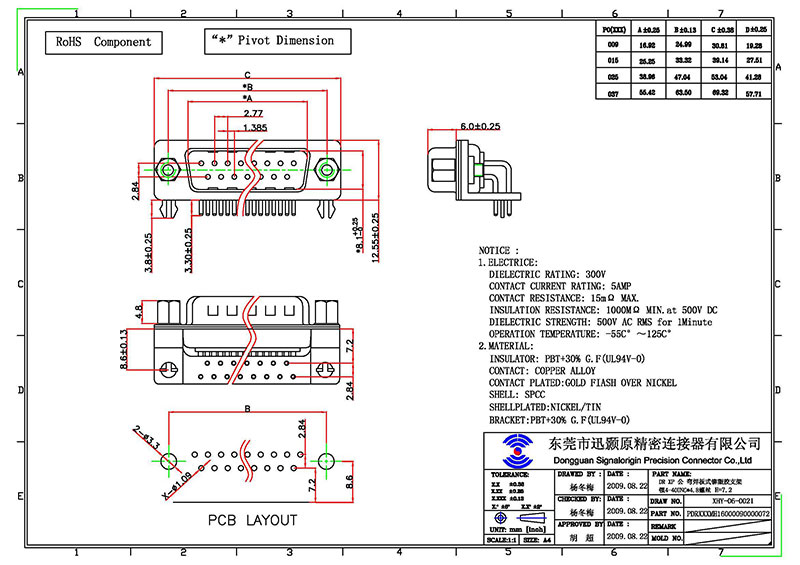

Drawing of Right angle pcb d-sub 15pin connector

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.


Safety UL Certification	ISO9001:2008
