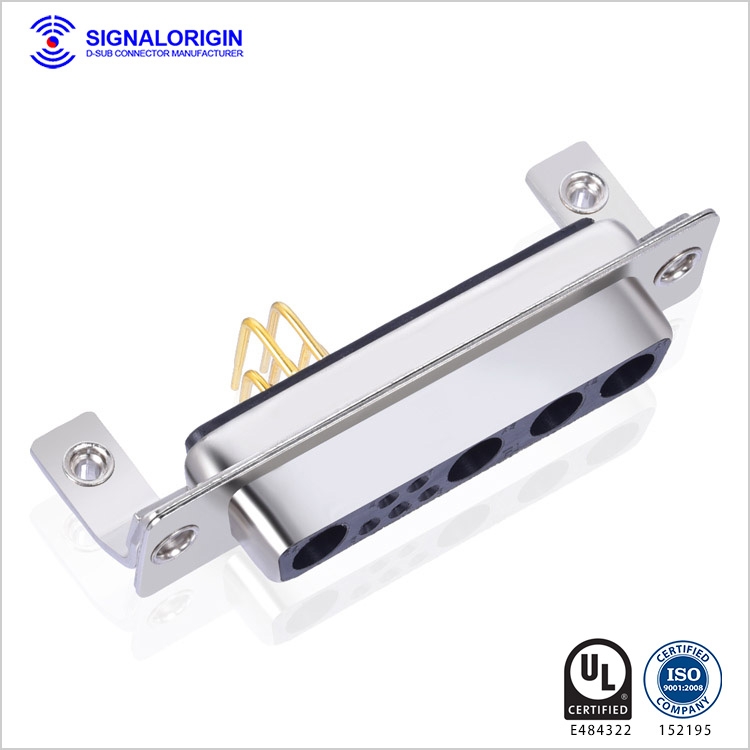

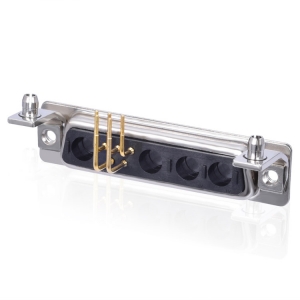

9w4 female right angle combo d connector

  • All contacts are precision machined

  • Contact: Phosphor copper material, gold plated

  • Different wire terminations are possible in a single connector

  • Power, signal, high voltage, air & thermocouple contact options

Inquiry Now

Description

9w4 female right angle combo d connector. The shell is steel/SPCC-SD material, Tin or Nickel finished. Combination d-sub with mixed layout, it provides the ideal solution for applications to require power, and signal within one connector. 9W4 D-Sub connector have 4pcs power contacts and and 5pcs signal contacts. You may like 9w4 male d-sub connector

Specification of 9w4 female right angle combo d connector

P/N XHY-05-1824








Female Right Angle Combo D Connector

Female Right Angle Combo D Connector

PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Phosphor Copper
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

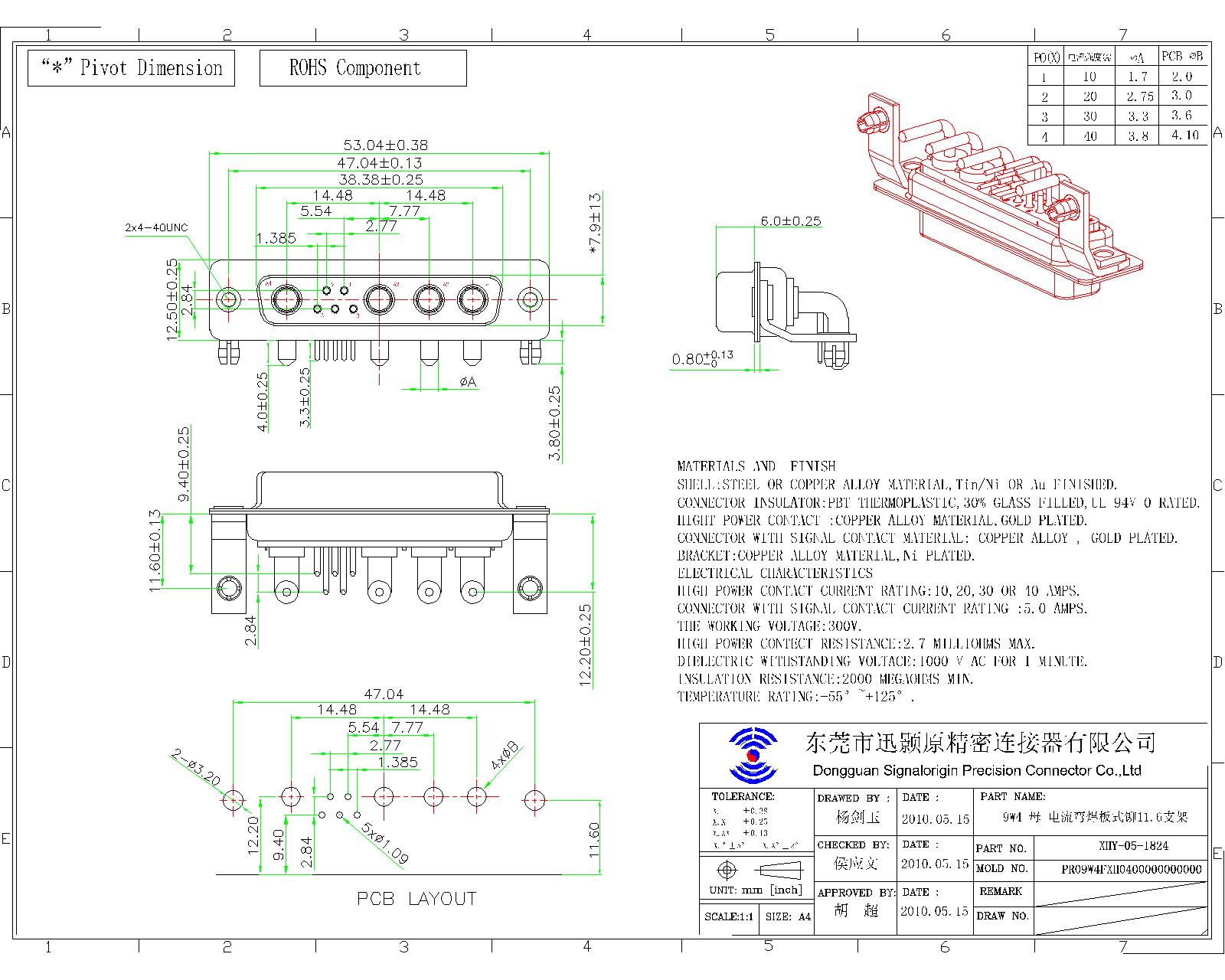

Drawing of 9w4 female right angle combo d connector

9w4 female right angle combo d connector
