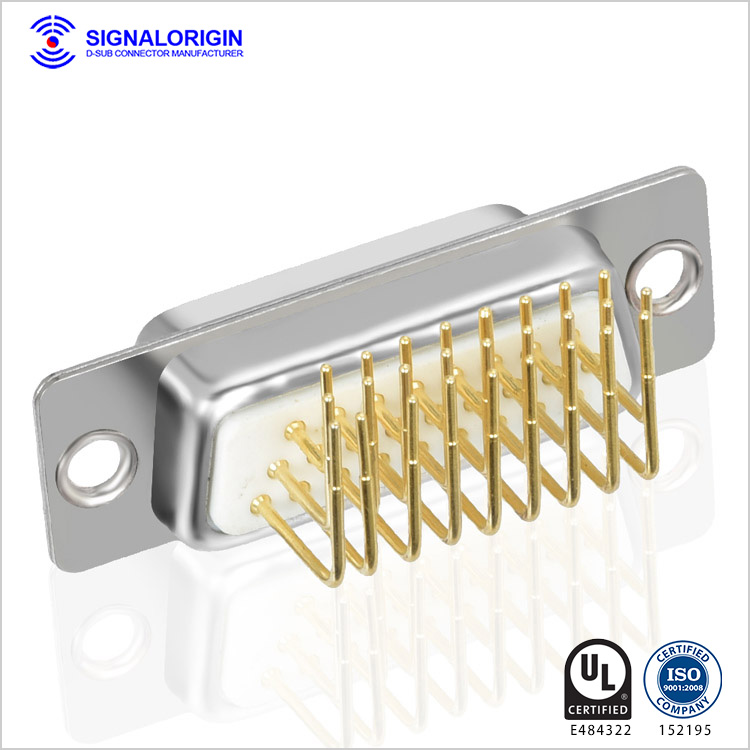

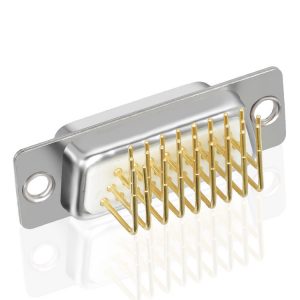

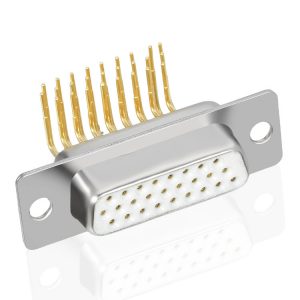

Standard angle D Sub 26 pin connector for sale

  • Angle d sub 26 pin connector

  • High density

  • All contacts are precision machined

  • Contact terminations can be solder cup, solder pin, wire wrap, crimp

Description

D sub 26 pin connector, right angle. High density D-Sub have the same size as the standard density connector but hold more contacts in its insulator. High Density connectors are available in 15,26,44,62 and 78 positions. And these connectors are made of the highest quality materials to ensure maximum operational efficiency during high intensity and mission critical applications. You may like 26 pin male d-sub connector.

Specification of Standard angle D Sub 26 pin connector

P/N  XHY-06-0114










Standard angle D Sub 26 pin connector for sale

Standard angle D Sub 26 pin connector for sale



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Phosphor copper
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric strength 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

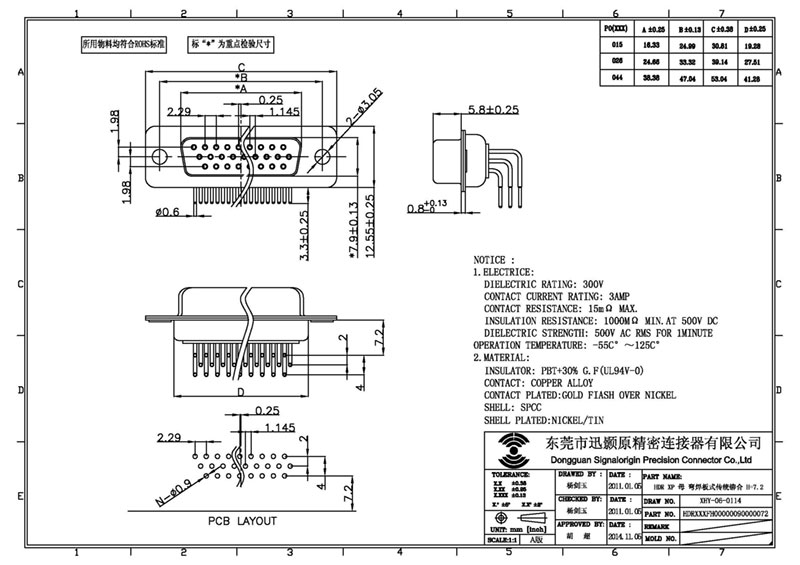

Drawing of Standard angle D Sub 26 pin connector

Standard angle D Sub 26 pin connector
